REGULUS 5 , 0
Wheel load capacity up to 5 t. Solid cast iron.
Square outer shape, square inner opening.
Consists of two segments. Covered watering hole.
Sits unfastened in frame, supported only under the outer edges
Inlay depth 30 mm.
Color: special primer and twice dip painted, black.

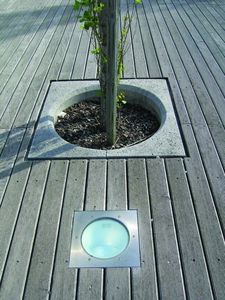

Additional charge: built-in subgrade lighting unit PALERMO 240/B.
|
|

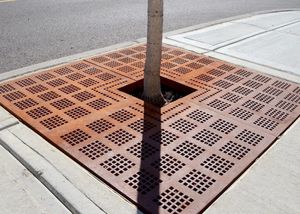

CORTEN TREE GRIDS
The patterned CorTen steel tree grids are made from ± 12 mm thick weathering steel. Available in square or round versions, both have a 35 cm diameter tree hole. When applied in the pavement we recommend to use a ground level frame work also in CorTen steel.
|
|
GRAVELGRIDS
A galvanized steel frame is filled with resin bound gravel (for instance dark grey Basalt, medium grey Bauxite or warm coloured gravel mix). The gravelgrids are completely porous and maintenance free (33x33mm).
|
|
SOLEA (Tronconique or pyramidal model) design agency APS
material: steel corten oxidized.
Dimensions: (mm) external diameter 2030; internal diameter 1400; 500 height
|
|
URBAN DECOR
The line includes
benches, litter bins,
tree grates, posts and
barriers. These products
are designed to fit
naturally in public
areas.
|
|

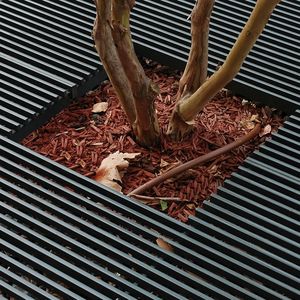

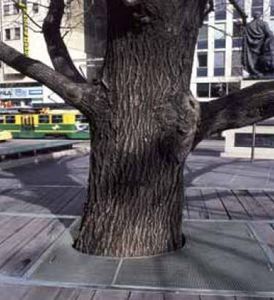

The special Meiser tree gratings are basically press locked gratings.
Tree gratings can be seamlessly built into pavements and thus increase the are available to pedestrians. These gratings enable trees to be given a superior maintenance, ventilation and watering service. They even protect the tree roots.
|
|
Line Evolution
Grills of entourage of trees made out of openwork and reinforced steel. Range made up of 4 flexible half-forms enter they giving 10 different forms. Elements screwed and posed within a sealed framework.
Completion of the framework: Galvanized.
Completion of the grill: Zinking + powdering polyester cooked with the oven, color RAL or aspact sanded.
> General dimensions: Central opening: O 540 Misters Épaisseur: 45 Misters.
> Standard models: Square 1200x1200 Rondo 1200 and 8 other special forms.
|
|
Link line
Grills of entourage of trees made out of openwork and reinforced steel. Range made up of 2 elements screwed and posed within a sealed framework.
Completion of the framework: Galvanized.
Completion of the grill: Zinking + powdering polyester cooked with the oven, color RAL or aspact sanded.
> General dimensions: Central opening: O 540 Misters Épaisseur: 45 Misters.
> Exist in versions: Square 1005 X 1005,1200 X 1200,1480 X 1480 and rectangular 1005 X 1480mm.
|
|
|
The treeguards in this range are made from 5mm thick steel sheet, laser cut, in order to make four kinds of decoration: with capital letters (LITTERA), with leaf elements (FLORA), with square geometric elements (STELO e GEMMA). The treeguards are made up of two halves, reinforced by a 30x4mm plate perimeter, and prepared for fixing together with screws. They are also supplied with the appropriate L-shaped counter-frame in 40x25mm steel plate, with brackets for concreting-in. The treeguards are available 735x735 (with central hole ø=320mm), 990x990 (with central hole ø=500mm),1190x1190mm (with central hole ø=500 or 800mm), 1440x1440mm (with central hole ø=800mm) and 1990x1990mm (with central hole ø=800mm).
|
|
Material:Made of ductile iron.
Circular openings:18 mm.
Presentation: 1/2
Finish:Black forge colour painted.
Optional:Angualr metal frame, L45
This model can be cut allow for a larger tree diameter.
|
|

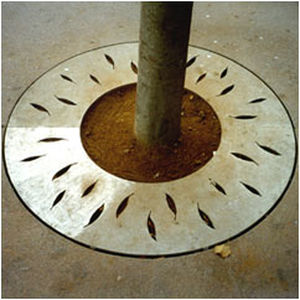

TREE-GRATE:
It consists of two modular parts joined by stainless steel screws. The anchorage bolts are M-12 zinc-coated steel, 130 mm in length.
FRAME:
It is supplied with a metal frame made out of hot-galvanised steel rods bolted to the concrete floor.
MODULAR PART:
Made out of cast aluminium and sanded magnesium. The perimeter and radial ribs are reinforced by cast aluminium braces. It has leaf-shaped perforations around the central circle for better drainage.
NUTS AND BOLTS:
In A4 stainless steel.
|
|
Cast iron Black
Painted with black forge oxiron
102 kg

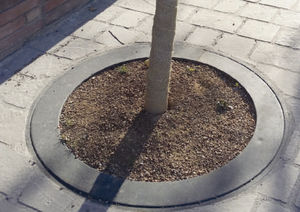

Cast iron ring painted with black forge oxiron
26 kg
Cast iron ring painted with black forge oxiron
18 kg
Embedded at paving level
|
|
|
|
