The ELEACOME range of electric radiating surface systems :
Eléatram is an electric floor heating system used for total or partial heating in private houses, flats and service industries.
Its principle of operation : The floor is heated by a cable at constant power attached to a plastic frame and the combined unit is then laid on an insulating plate in PSE.
Its implementation uses a "wet" solution i.e. under a concrete slab or a fluid screed on which the floor covering will be laid. |
|
A slimming diet for heated flooring !
The ELEACOME range of electric radiating surfaces :

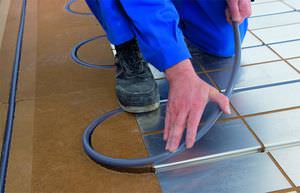

Eléavivre is a low temperature floor heating system suitable for new or existing floors in private housing, apartment blocks and service industries.
Innovation !
ACOME offers a truly innovative product with a heated floor system only 22 mm thick (excluding floor covering), for use with so-called "dry" solutions, i.e. without a concrete slab or liquid screed.

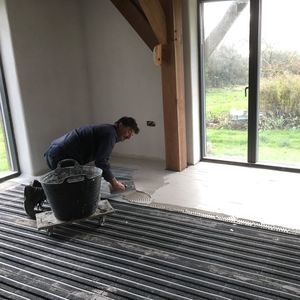

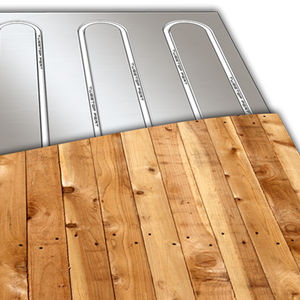

The floor is heated by a round self-regulating cable lying in slots in isolating slabs made in aluminium coated PSE (for improved diffusion and homogenisation of heat). |
|
The overall size of the Vysa-MatTM Popular heating mats has been optimised so that they closely match the most common room sizes encountered.
Their specification is even superior to most others with an IP 67 rating that protects the heating cables in the event of short-term flooding under 1-m of water!
-Vysa-MatTM Popular heating mats rated 100W/m2 are generally suitable only for floor warming and comfort heating. However, larger areas in well insulated homes are often heated adequately using 100W/m2 - in well insulated Scandanavian houses they only use 80W/m2!
-Vysa-MatTM Popular heating mats rated 160W/m2 can provide primary heating for most medium sized rooms, including conservatories, where sub-floor insulation complies with building regulations
-Vysa-MatTM Popular heating mats rated 200W/m2 can provide primary heating for conservatories and all but the smallest rooms in the house
We do recommend that Vysa-PronTM insulation is installed to reduce energy costs and improve warm up times.
|
|
Vysa-MatTMClassic is our latest design of cable and incorporates PTFE (Teflon), which is far superior to any other material for electric underfloor heating applications, as the insulation material. We now offer a 'lifetime guarantee' as Teflon is virtually indestructible.
The exceptionally small profile of the heating cable makes Vysa-MatTMClassic ideally suited to installation within the adhesive layer - the method preferred by professional floor tilers when laying ceramic tiles.

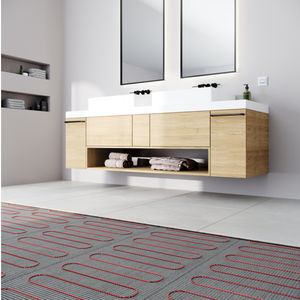

The ultra thin Vysa-MatTM Classic heating mats rated 100W/m2 to 200W/m2 can easily be fitted directly onto your existing tiled floor without needing remove it. Vysa-MatTM Classic can be installed within the thickness of the tile adhesives and therefore adds no significant height to the floor level. Consequently, there should be no requirement to reduce door heights, raise skirting boards etc.
Vysa-MatTM Classic heating mats rated 100W/m2 are ideal for refurbishment projects where they can be installed onto an existing floor structure
Vysa-MatTM Classic heating mats rated 150W/m2 would be suitable as a primary heating source in well insulated dwellings with a large surface area
Vysa-MatTM Classic heating mats rated 200W/m2 would be suitable as a primary heating source in not so well insulated dwellings with a smaller surface area. They are ideal for conservatories. large hallways and lobbies too - anywhere that you need more heat

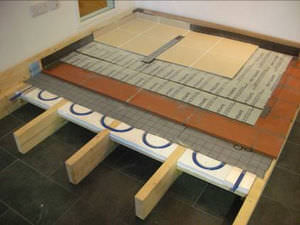

According to BS EN 60 335 / IEC 335 Vysa-MatTM Classic 100W/m2 can be used directly on top of timber sub-floors without Vysa-PronTM thermal insulation. Vysa-MatTM Classic heating mats rated 150W/m2 can be used on timber sub-floors but BS EN 60 335 / IEC 335 recommends that the power rating must be confined to 100W/m2 unless you install Vysa-Pron thermal insulation on top of the timber sub-floor.
Normally, Vysa-MatTM Classic heating mats rated 100W/m2 would be chosen to simply provide a warm floor so that you have the comfort of walking on a floor that doesn't feel 'cold'.
Naturally, Vysa-MatTMClassic is a twin conductor design with a single 3 metre long 'cold tail' connections lead (only one connection cable to the thermostat).
Vysa-MatTMClassic is supplied together with a 2 metre length of 10mm flexible conduit for the floor sensor (supplied with the thermostats). We include a (red) bung in one end to prevent adhesive from entering the conduit and sticking to the floor sensor.
For the technically minded, Teflon is non-toxic and has excellent mechanical strength, tear resistance and flexibility. It is fire retardant and completely free from any thermal aging effects. It is completely biocompatible and unaffected by fungus, bacteria or mould growth. It is resistant to all chemicals used in building technology and is unaffected by prolonged exposure to UV radiation, sunlight and moisture.
|
|
A slimming diet for heated flooring !
The CLIMACOME range of hydraulic radiating surface systems:

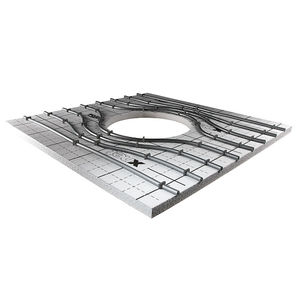

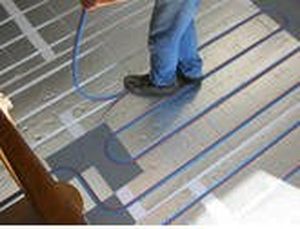

Vivracome is a low temperature warm water floor heating system suitable for new or existing floors in private houses, apartment blocks and service industries.
Innovation !
ACOME offers a truly innovative product with a heated floor system only 22 mm thick (excluding floor covering), for use with so-called "dry" solutions, i.e. without a concrete slab or liquid screed.

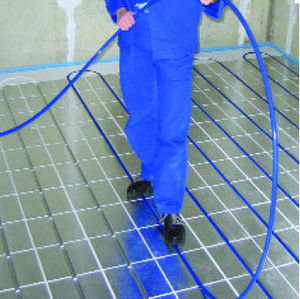

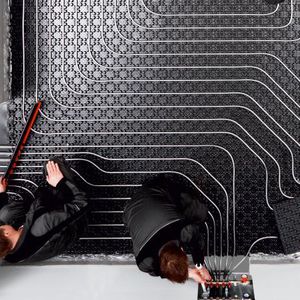

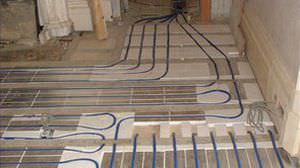

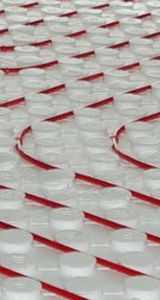

Its principle of operation is to circulate water through polyethylene tubing (PEX) lying in slots in insulating slabs made in aluminium coated PSE (for improved heat diffusion and homogenisation). |
|
The CLIMACOME® range of hydraulic radiating surface systems :

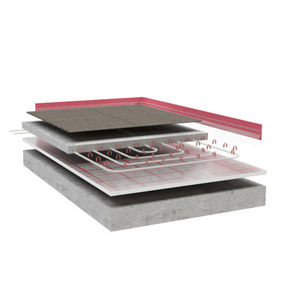

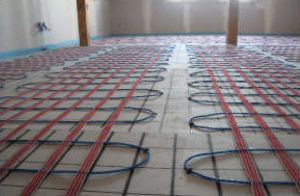

Thermacome® is a low temperature warm water system used for total or partial heating and/or cooling in private houses and apartment blocks, in the tertiary sector : offices, factories, schools, hotels, restaurants, churches, etc. and in sports centres : gymnasiums, swimming pools, stadiums, etc.

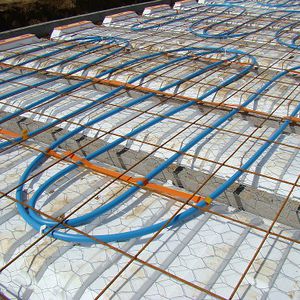

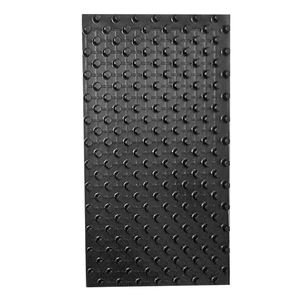

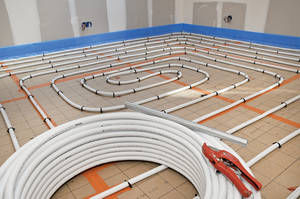

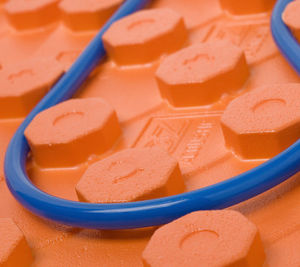

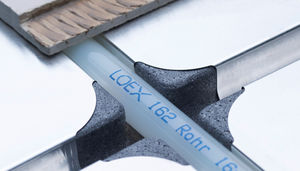

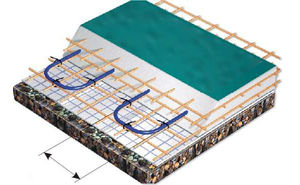

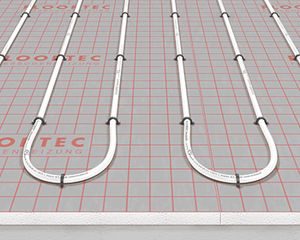

Its principle of operation is to circulate water through polyethylene tubing (PEX), clipped in place in self-fitting tube guide holders in PSE insulating slabs.
Its implementation uses a "wet" solution i.e. under a concrete slab or a fluid screed on which the floor covering will be laid.
All the components are compliant with the current regulations |
|
| Domocâble offers comfort d´une soft and uniform heat and d´un agreeably hot ground without cold zone and circulation to d´air. The temperature of surface of the ground does not exceed 28°C. |
|

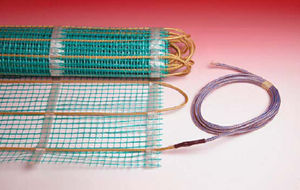

| Honeywell Floor Heating systems consist of a Teflon insulated copper alloy resistance heating element sewn to a fiberglass mesh backing. The heating element is evenly spaced in 2” serpentine loops. It also delivers a faster, more even distribution of heat for improved homeowner comfort. The entire system is less than 1/8” thick allowing it to be easily installed under tile and stone without greatly affecting the floor height. |
|

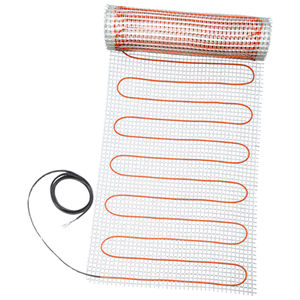

Honeywell Floor Heating systems consist of a Teflon insulated copper alloy resistance heating element sewn to a fiberglass mesh backing. The heating element is evenly spaced in 2” serpentine loops. It also delivers a faster, more even distribution of heat for improved homeowner comfort. The entire system is less than 1/8” thick allowing it to be easily installed under tile and stone without greatly affecting the floor height.
The fiberglass mesh backing helps to hold the heating element in place for easy, fault-free installation. It also allows the system to be covered directly by the thinset cement used to lay tile or natural stone flooring.
Full room heating systems generally consist of a single Honeywell heating “roll” of predetermined length. The system is placed in position using the easy-to-follow floor layout diagram provided with each kit, with a pre-attached lead that runs to a thermostat and/or junction box for power. No additional installation wiring is required. |
|

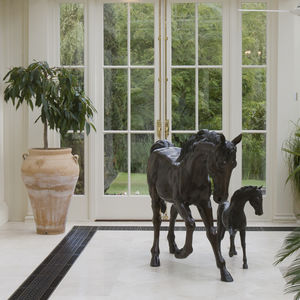

Underfloor heating suitable for fitting around the perimeter of an un-carpeted room which requires high-output heating with a fast response time. Typical applications are garden rooms and galleries, entrance halls, and traditional greenhouses and conservatories.
The heating system uses convectors, set in a duct and covered with grilles and works efficiently off existing central heating without fans or additional pumps. Marston & Langinger offers a design-layout service, and supplies heating convectors, baffles (to improve air circulation), alloy grille-supports, trims, and grilles in various sizes, combinations and patterns. In glass buildings with electric ventilators, a Marston & Langinger automatic controller can be used to operate both the heating and ventilation to give a balanced temperature, whatever the weather outside.
|
|

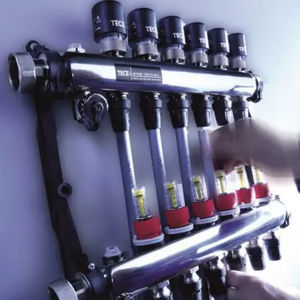

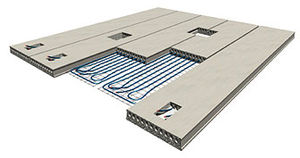

ROTEX System 70 permits the combination of radiators and floor heating with only one manifold, one riser pipe and above all one circulation pump. ROTEX System 70 is a low temperature heating system. The max. supply temperature can be up to 82 °C, that means floor heating and radiators can be operated with the same water temperature. The floor heating depends on the temperatures calculated for the radiators.
|
|
To be
electrical radiating ground
System S.R.E is made up of an electrical resistance with enmeshes self-adhesive that facilitates the installation, in addition incorporates an advanced /programador regulator to optimize the power consumption to the maximum. |
|
