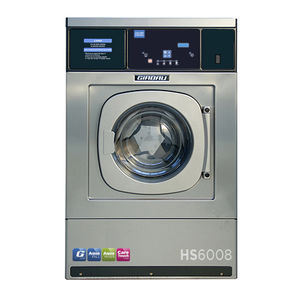

HS 6 Series, THE CHALLENGE OF INNOVATION
To provide their clients with washers with the best washability and offer proprietors the best quality wash, profitability, productivity and a simple and easy form of management. This has been the leitmotif which has led Girbau to develop the 6 series. The HS 6 series washer extractors are high speed and 100% Free Standing, do not require bolting down and reach spin speeds up to 1000 rpm.
They are available in the following capacities: 9kg (HS-6008), 14kg (HS-6013), 19kg (HS-6017), 25kg (HS-6023), 44kg (HS-6040), 63kg (HS-6057) & 122 kg (HS-6110).
|
|
Girbau industrial coin control washer-extractors are available with load capacities of 8kg, 13kg & 17kg.
Suitable for coin-op establishments. It has 4 individually modifiable, phase-to-phase programs (up to 6 phases per program). Pay system with coins or tokens. Failure check and alarm messages system. The clock option allows you to program prices according to the time of day and program. Light indicators guide the user step by step until the washing machine starts.
HS 6 Series, THE CHALLENGE OF INNOVATION
To provide their clients with washers with the best washability and offer proprietors the best quality wash, profitability, productivity and a simple and easy form of management. This has been the leitmotif which has led Girbau to develop the 6 series. The HS 6 series washer extractors are high speed and 100% Free Standing, do not require bolting down and reach spin speeds up to 1000 rpm.
They are available in the following capacities: 8kg (HS-6008), 13kg (HS-6013) & 17kg (HS-6017).
|
|
|
|
|
|
High Speed open pocket coin op Washer extractors WK
Washing machine high spin speed with very robust construction, available load capacities 11 & 16 Kg, frequency controlled motor (with variable speed according to the sort of linen) coin op graphic plc control (with display of remaining time, temperature, washing and spin indication, etc, long life time machine, suspension system and detection of unbalance, damping effects in the machine of the spring-system with shock absorbers,causing minimal vibration (very smooth and very reliable working of the machine),CE standard soap dispenser with 3 compartments for detergents and predisposed for liquid dosing, the housing of the machine and inner and outer drum and all other parts of the machine that come in contact with water are made of stainless steel material (quality AISI 304), possibility of cooldown system for very sensitive materials (this avoids “thermic shocks” on the linen) on delicate and wool progs, easy access for maintenance works (all panels of housing can be removed very easily)
|
|
|
|
|
|
Introducing IDEAL I-40, Wet Clean / Dryclean All in one Machine.
From the best name in drycleaning, Union has opened a new age in cleaning technology with the new IDEAL I-40. This machine features two independent washing circuits , one for wetcleaning and one for drycleaning.
• IDEAL I-40 is a laundry washing machine for a WET CLEANING system, with a independent circuit of washing and water drainage. The wetcleaning circuit can be operated as a wetcleaning machine with a specialized humidity control or utilized as a normal laundry washer / dryer.
• IDEAL I-40 is a laundry dryer for the WET CLEANING system, equipped with a moisture control sensor.
• IDEAL I-40 is a closed loop (dry to dry) drycleaning machine designed for use with hydrocarbon, GreenEarth, and other alternative solvents.
The new IDEAL I-40 is currently available to process loads in a 18 kg capacity. The system offers operators many features to increase productivity while maintaining its inexpensive cost.
IDEAL I-40: Innovation, technology and full flexibility.
|
|
6 MS Series, experience and innovation
To provide their clients with washers with the best washability and offer proprietors the best quality wash, profitability, productivity and a simple and easy form of management. This has been the leitmotif which has led Girbau to develop the 6 series.
The 6 MS series, requires bolting down, reach speeds up to 600 rpm and are available in the following capacities: 10kg (MS-610), 13kg (MS-613), 17kg (MS-617) and 23kg (MS-623).
|
|
|
|
|
|
GIRBAU WASHING MACHINES WET CLEANING READY
13, 17, 23kg
THE GREEN ALTERNATIVE TO THE WASHING IN DRY
Washing machines HS-6013, HS-6017 and HS-6023 incorporate the symbol Wet Cleaning Ready so that the users identify of fast way the possibilities of versatility of these models.
The Inteli control allows to realize from intensive processes of washing to take the most difficult dirt of mantelerías or sheets to processes of end taken care of for the delicate article washing like wool.
The versatility of the Girbau washing machines is an important added value for the dry cleaners businesses. A single machine allows them to realize processes of all type, only changing to the parameters of programming, amortizing therefore the equipment and increasing the yield of the business.
Girbau offers the capacities of 13kg, 17kg and 23 kg for processes of Wet Cleaning considering that a washing machine 17kg is considered that it has a capacity of 8,5kg to Wet Cleaning (half of the nominal capacity calculates that indicates the manufacturers). Thus, the range of Series 6 of Girbau would be translated in capacities of 6,5kg, 8,5kg and 11,5kg in Wet Cleaning.
The Wet Cleaning is the best alternative to the cleaning in dry of delicate articles. It only requires knowledge of the process and a washing machine Girbau Wet Cleaning Ready.
|
|
High Spin Washing Machine Mod. LM 14 – LM 30
- Capacity: 1:10:
Mod.LM 14: kg 14 / Mod.LM 18: kg 18/Mod. LM 23: kg 23 / Mod.LM 30: kg 30
-Remote assistance system with GSM standard module
-Electronic timer: 6 stored programmes
-Microprocessor: possibility to fix and store up to 30 programmes
Available Optional Services and Components:
-Pipe coil for indirect steam heating purpose
-Electro valve entrance/incoming high pressure steam
-Electronic card to manage up to a maximum of 8 pumps on an external wall
-Cable to extend the antenna cable
-High Performance antenna
Microprocessor Version available with:
· Peristaltic pumps for liquid detergent
· Specifically tailored programmes
|
|
|
|
|
|
Washing machine high spin speed with very robust construction, available load capacities 10 & 55 Kg, frequency controlled motor (that has the possibility to set and change the speed according to the sort of linen and it gives a perfect washing result and very smooth washing operation) and freely programmable microprocessor (possibility of changing the water level, temperature, washing and spin times, etc , up to 99 washing cycles available, programes can be changed very easy via a PC connection or memory card), (long life time of the machine), suspension system and detection of unbalance, damping effects in the machine of the spring-system with shock absorbers,causing minimal vibration (very smooth and very reliable working of the machine),CE standard soap dispenser with 3 or 5 compartments for detergents, the machine has the connections for liquid detergents also, the housing of the machine and inner and outer drum and all other parts of the machine that come in contact with water are made of stainless steel material (quality AISI 304), possibility of cooldown system for very sensitive materials (this avoids “thermic shocks” on the linen), easily accessible to maintenance works (all panels of housing can be removed very easily), open pocket inner drum.
For further details see the technical data sheet.
|
|
PCH Model: PCH-25 / PCH-35 / PCH-45 / PCH-62 / PCH-83

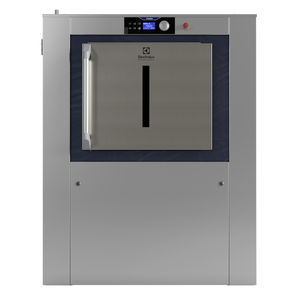

High speed barrier washer extractor with two opposed doors.
Capacity: 25/35/45/62/83 kg. (55/77/99/136/183 lbs.)
G Factor 350.
Inner and outer drums, doors and external panels in stainless steel.
Installation: No holding-down required.
Safety doors: with electrical lock.
Microprocessor control.
Heating: Electric, Steam.
|
|
Clean Rooms
Most cleanroom garments are made of 100% polyester, proprietary materials such as GoreTex™, or a combination of materials. Because these fabrics are relatively light, the use of the washer’s loading ratio and volume. Split pocket washers are the most popular because the inner cylinder is divided into two compartments, making the washer much easier to load and unload. Washers should be sized so that the contents of one pocket would go to one dryer when unloaded, while the contents of the other pocket would go to the other dryer.
|
|
Opposed doors (soiled room / clean room) Heating: Electric, Steam, Gas Extraction: 900 /1000 R/prn
Optional features
Type 316L stainless steel cylinder
Cylinder electropolishing
Stainless steel water valves
Clean room air intake
Liquid supply injection
Water fill and chemical feed control
Indirect steam heating
|
|
|
|
|
|
Aseptic Barrier Washer PCH
Washing machine high spin speed with very robust construction,barrier – wall design separate soiled and clean side) available capacities: 15-200 kg divided drum,frequency controlled motor (it has the possibility to set and change the speed according to the sort of linen and it gives a perfect washing result and very smooth washing operation)and freely programmable microprocessor (possibility of changing the water level,temperature, washing and spin times, etc , up to 99 washing cycles available, programmes can be changed very easy via a PC connection or memory card),both sided bearings (long life time of the machine), suspension system and detection of unbalance, damping effects in the machine of the spring-system with shock absorbers and air bags causing minimal vibration (very smooth and very reliable working of the machine),the stainless steel soap dispenser with 3 or 5 removable compartments (dosing boxes) with big capacity for the detergents, the machine has the connections for liquid detergents also, the housing of the machine and inner and outer drum and all other parts of the machine that come in contact with water are made of stainless steel material (quality AISI 304), possibility of cooldown system for very sensitive materials (this avoids “thermic shocks” on the linen), easily accesible to maintenance works (all panels of housing can be removed very easily), divided inner drum.
See techincal data for further info.
|
|
ORION machines are the technological synthesis of high performance and value for money in industrial laundry equipment designed by real experts. Care has been taken in designing every detail, and using carefully chosen materials to produce a high quality, top performance product to last over time.
Quality is further guaranteed through production standards such as the internationally recognised ISO 9001. ORION machines boast a refined and modern design which reflects the quality of the product. ORION offers a full range of washer extractors with low and high spin extract speeds, double door sanitary barrier washers, as well as a complete range of high performance professional ironers.
|
|
Solid construction: durable stainless steel drum, tub and cabinet
- Easy for operation and easy programmable EC-microprocessor
- Short washing cycles available (+/- 34 minutes) when connected to a hot water supply, high power
of 9 kW (3 phase)
- The special function button has the possibility to programm one extra funcition :
install the soaking time, to delay the starting of a programme, to wash more economically by
switching off the prewash or set a economic or gentle programm or desactivating the spin sequence.
- High Extraction speed till 1150 rpm. Depending on the programme from 800 up to 1150 rpm
which results in a high G-factor of 300.
- Standard with drain valve, available with pump.
- Available with matching dryer DA9, DAM9 or stacked version DAMS9
- Safety main switch
- Electrical opening of the door, with possible emergency opening
- The washer can be equipped with an external coin meter, connectable to the timer.
|
|
- Capacity 13/17/22/33 lbs
- Free standing (soft mount) -Spin speed 1000 RPM
- Microprocessor control 9 preset cycles and 91 available
- Coin operation available
|
|
- Capacity: 17.6 - 22 - 28.6 - 39.6 pounds
- Extraction: 1000 R/PM
- Microprocessor control: 16 preset programs, 84 free programmable
- Free standing -Digital display for washing steps
|
|
- Capacity: 55 pounds -121 pounds
- Extraction: 900 R/PM - 760 B/PM
- Microprocessor control:
16 preset programs, 84 free programmable
- Free standing with self-balancing system -Digital display for washing steps
- Connection for computer
|
|
- Soft-mount washer extractor
- Stainless steel top & front panels for highly industrial environments
- Large door opening for easy loading & unloading
- Standard inverter drive, increasing the life span of the machine
- Vital parts easily accessible for service
- Available in Coin & OPL version
|
|
- Freestanding or soft-mount washer extractor
- Totally freestanding, enabling installation on any floor and any level
- Stainless steel top & front panels for highly industrial environments
- Large door opening for easy loading & unloading
- Standard inverter drive, increasing the life span of the machine
- Drain valve in front directly under the tub, reducing water consumption
- Self-tensioning poly V-belt, increasing life span
- Option: frontal soap dispenser
- Available in Coin & OPL version
|
|
- Hard-mount washer extractor
- WF-range: normal spin speeds (80 - 90G)
- Standard inverter drive, increasing the life span of the machine
- Solid A-frame construction, minimizing vibrations & maximizing stability
- Oversized industrial bearing house
- Stainless steel top & front panels for highly industrial environments
- Large door opening for easy loading & unloading
- Easy to service
- Available in Coin & OPL version
|
|
- Hard-mount washer extractor
- Stainless steel top & front panels for highly industrial environments
- Fast spin speeds (145 - 165 G): the higher the G-force during extraction, the lower the water retention of the fabrics being processed. See Product brochure for more info
- Standard inverter drive, increasing the life span of the machine
- Solid A-frame construction, minimizing vibrations & maximizing stability
- Oversized industrial bearing house
- Large door opening for easy loading & unloading
- Easy to service
- Available in Coin & OPL version
|
|
- Soft-mount washer extractor
- Stainless steel cabinet for highly industrial environments
- Large door opening for easy loading & unloading
- Standard inverter drive, increasing the life span of the machine
- Vital parts easily accessible for service
- Available in OPL version
|
|
- Soft-mount washer extractor
- Stainless steel top & front panels for highly industrial environments
- Large door opening for easy loading & unloading
- Standard inverter drive, increasing the life span of the machine
- Vital parts easily accessible for service
- Available in OPL version
|
|
|
|
|
|
- The cabinet is made in premiun quality stainless steel AISI 304 (also side panels )
- Two large drain valves (o 76 mm) ensures fast draining and a shorter cycle time
- The three standard large inlet valves (1") ensures short cycle times and can be used for waterrecovery systems.
- Exceptionally large door opening (53 cm), with very strong door hinges, opens 180°, ensures easy loading and unloading.
- The stainless steel soap dispenser consists of 5 removable compartments.
- The soap is added to the washing water at the bottom of the tub at the right moment during the washing cycle. This prevents direct contact with the linen and avoids damage of the linen.
The water for cool down is added in the same way. This avoids ‘thermic shock’, the main cause of shrinking.
- The machine can be provided with soap pumps. (up to 8 connections).
- The FS-models are standard equipped with a frequency-controlled motor and a free programmable microprocessor. Moreover, it gives a perfect washing result, a smooth operation and a longer lifespan, both of the linen and the machine.
- Two large industrial ball bearings, protect by three consecutive seals against leakage, guarantees a long life span.
|
|
- The cabinet is made in premiun quality stainless steel AISI 304 (also side panels )
- The large drain valve ( o 76 mm) ensures fast draining and a shorter cycle time
- Extraordinary big door diameter ensures easy loading and unloading
- 5 Large compartment soap dispenser.
- The soap is added to the washing water at the bottom of the tub at the right moment during the
washing cycle. This prevents direct contact with the linen and avoids damage of the linen.
The water for cool down is added in the same way. This avoids ‘thermic shock’, the main cause of
shrinking.
- The machines are standard provided with liquid soap connections.
- Frequency controlled motor together with microprocessor control gives a perfect washing result, a smooth operation and a longer lifespan
|
|
|
|
|
|
- Exceptionally large door opening (70cm), with very strong door hinges, opens 180°.
- Tub is made of premium quality stainless steel AISI 304.
- Drum and lifting ribs are made of higher class of premium stainless steel AISI 316L.
- The large diameter (1280 mm) and the 6 extra lifting perforated ribs, allow better dropping and shower actions for a cleaner wash, with less crumpling of permanent press fabrics.
- The FS120 is equipped with 4 air-bags and 4 hydraulic suspensions.
- Machine is also equipped with 2 horizontal hydraulic suspensions.
In combination with a frequency controlled motor (FS-range) unbalances are almost non-existing.
- The FS120 is standard equipped with a frequency-controlled motor.
Moreover, it gives a perfect washing result, a smooth operation and a longer lifespan, both of the linen and the machine.
- The shaft can be loosened from the drum with a unique screw-bolt-system. Therefore the complete bearing house (including bearing, seals, shaft,…) can be removed separately without having to disassemble the whole machine and even drum do not have to be released.
|
|
The forthcoming year 2008 will be extremely important for Primus as numerous new products are to be launched. The first of these products is a new washer-extractor, namely FS23.
FS23 is a washer-extrator with the capacity of 22 kg (220 liters) and, similarly to models FS 33 40 55, it can be equipped with the Graphitronic® multifunctional timer.
The new washer was specially developed for the Coin–op markets as it is very compact (21 cm lower & 8,5 cm slimmer than its forerunner FS22). Other great features on the FS23 coin are the user friendly Easy control® , integrated coin timer and the soap hopper on the top lid.
Optionally there will also be a FS23 „PRO“ available for the OPL market. The FS23 „PRO“ will be equipped with a stanless steel soap hopper with 4 compartments mounted on the front.
Moreover, a lot of attention has been paid to uniformity and design, so that the washer would form a harmonious unit with the other washer extractors in the range.
|
|
|
|
|
|
Capacities 8, 10 and 12 kg
Spin speed 1100 (8080), 1000 (8100) and 800 (8120) rpm.
Maximum care for your laundry:finely perforated fabric-friendly drum, gentle start and sensor controlled multi-stage spinning technology
Top washing results: hydrodynamic flow reversal for the best soaking, drum vanes with integrated scoop system residual moisture
Lower operating costs due to reduced water and electricity consumption
Ergonomic loading: large metal door with 130° opening angle, door handle on right.
ergonomic, clear control panel, easily understandable pictograms.
Programme status, duration and time remaining display
Practical detergent filling: four dispensing containers on the top, low maintenance water flush system
Durable: factory tests indicate a life of 20,000 cycles, frequency rectified drive system
Two water valves: cold and hot water or hard and soft water
5 microprocessor controlled main programmes with short washing times: Hand-wash 20° / Wool 30° / Coloured 40° and 60° / Boil wash 95°
Special programmes: Express programme at all temperatures/Gentle programme / Pre-wash / Intensive / Energy-saving (reduced temperature) / Rinse stop / Reduced spin speed
Wash-Card: Wet-Clean and industry specific special washing programmes
|
|
- Semi commercial washer extractor
- Totally freestanding: can be installed on any floor and any level
- Stainless steel inner & outer drum
- 4 large heavy duty shock absorbers
- CE-approved product
- Door opening of 180° for easy loading and unloading
- Available in Coin & OPL version
|
|
- 33/35 lbs
- Opposed doors (soiled room / clean room)
- Electric heating
- Extraction 1000 RPM
- Microprocessor control
- Large loading doors
- Perfectly designed for nursing homes
and for washing resident garments
Front end-loading and rear unloading machines
for use where soiled and cleaned linen must be
separated in accordance with the RABC standards.
|
|
|
|
