How can you prepare for a rainy day? The answer is blowing in the wind.
Small wind electric systems can deliver serious energy. This is just one lesson people are learning all around the world. From remote homes and cabins to rural communications towers and monitoring stations, people are using small wind system to generate inexpensive energy, right where it's needed. And for a great many of these people, the system of choice is Southwest Windpower's Air generator.
Today, Air Breeze, the new generation of the world's best-selling small wind generator, powers countless lights, radios, computers, tools and appliances. It is also used widely to complement solar PV systems. Air Breeze is a perfect choice for hybrid wind/solar systems that provide you with the most reliable year-round energy supply.
Technical Specifications
Rotor diameter 46 in (1.17 m)
Weight 13 lb (5.9 kg)
Shipping dimensions 27 x 12.5 x 9 in (686 x 318 x 229 mm) 17 lb (7.7 kg)
Mount 1.5 in schedule 40 1.9 in (48 mm) OD pipe
Start-up wind speed 6 mph (2.68 m/s)
Voltage 12 and 24 VDC
Rated power 200 watts at 28 mph (12.5 m/s)
Turbine controller Microprocessor-based smart internal regulator with peak power tracking
Body Cast aluminum (Air Breeze Marine is powder coated for corrosion protection)
Blades Injection-molded composite (3)
Overspeed protection Patented electronic torque control
Monthly Energy Production 38 kWh/mo at 12 mph (5.4 m/s)
Survival wind speed 110 mph (49.2 m/s)
Warranty 3 Year Limited Warranty
|
|
Direct Drive Wind Turbine
Rated Output : 3000W
Max output: 4500W
Charge Voltage: DC 120V
Numbers of blade: 3pcs
Blade material :Glass fibre reinforced plastic
Blade diameter :4.6m
Start up wind speed : 3.0m/s
Rated wind speed : 9.0m/s
Rated rotate speed : 400r/min
Wind Utilize Ratio : 0.45Cp
Generator Efficiency: >0.78
Pole Diameter: 160mm
Tower Height : 10m
Generator weight : 35kg
12V 150Ah or 200Ah Battery (optional): 10 pcs(suggestion)
|
|
Direct Drive Wind Turbine
Rated Output : 2000W
Max output: 3500W
Charge Voltage: DC 120V
Numbers of blade: 3pcs
Blade material :Glass fibre reinforced plastic
Blade diameter : 3.8m
Start up wind speed : 3.0m/s
Rated wind speed :9.0m/s
Rated rotate speed : 450r/min
Wind Utilize Ratio : 0.45Cp
Generator Efficiency: >0.78
Pole Diameter: 120mm
Tower Height : 10m
Generator weight : 25kg
12V 150Ah or 200Ah Battery (optional): 10 pcs(suggestion)
|
|
Direct Drive Wind Turbine
Rated Output : 5000W
Max output: 7500W
Charge Voltage: DC 240V
Numbers of blade: 3pcs
Blade material :Glass fibre reinforced plastic
Blade diameter : 6.4m
Start up wind speed : 3.0m/s
Rated wind speed :10.0m/s
Rated rotate speed : 300r/min
Wind Utilize Ratio : 0.42Cp
Generator Efficiency: >0.8
Pole Diameter: 273mm
Tower Height : 12m
Generator weight : 70kg
12V 150Ah or 200Ah Battery (optional): 20 pcs(suggestion)
|
|
Direct Drive Wind Turbine
Rated Output : 10000W
Max output: 15000W
Charge Voltage: DC 300V
Numbers of blade: 3pcs
Blade material :Glass fibre reinforced plastic
Blade diameter : 8.0m
Start up wind speed : 3.0m/s
Rated wind speed : 10.0m/s
Rated rotate speed : 180r/min
Wind Utilize Ratio : 0.42Cp
Generator Efficiency: >0.8
Pole Diameter: 360mm
Tower Height : 14m
Generator weight :150kg
12V 150Ah or 200Ah Battery (optional) :25 pcs(suggestion)
|
|
Direct Drive Wind Turbine
Rated Output : 20000W
Max output: 30000W
Charge Voltage: DC 300V
Numbers of blade: 3pcs
Blade material :Glass fibre reinforced plastic
Blade diameter : 9.0m
Start up wind speed : 3.0m/s
Rated wind speed :10.0m/s
Rated rotate speed : 120r/min
Wind Utilize Ratio : 0.42Cp
Generator Efficiency: >0.8
Pole Diameter: 430mm
Tower Height : 14m
Generator weight : 310kg
12V 150Ah or 200Ah Battery (optional): 25 pcs(suggestion)
|
|
Direct Drive Wind Turbine
Rated Output: 500W
Max output: 1000W
Charge Voltage: DC 24V
Numbers of blade: 3pcs
Blade material: GRP
Blade diameter: 2.7m
Start up wind speed : 2.5m/s
Rated wind speed :7m/s
Rated rotate speed : 600r/min
Wind Utilize Ratio : 0.48Cp
Generator Efficiency :>0.78
Pole Diameter: 76 mm
Tower Height :6m
Generator weight :6.5kg
12V 150Ah or 200Ah Battery (optional): 2 pcs(suggestion)
|
|
Direct Drive Wind Turbine
Rated Output : 1000W
Max output: 2000W
Charge Voltage: DC 60V
Numbers of blade: 3pcs
Blade material: Glass fibre reinforced plastic
Blade diameter :3.1m
Start up wind speed : 3.0m/s
Rated wind speed :9.0m/s
Rated rotate speed : 500r/min
Wind Utilize Ratio : 0.45Cp
Generator Efficiency: >0.78
Pole Diameter: 90mm
Tower Height : 8m
Generator weight : 15kg
12V 150Ah or 200Ah Battery (optional): 5 pcs(suggestion)
|
|
Rated output: 2000W
Oar :Vertical/auto variable pitch
Rated wind speed: 10m/s
Cut-in wind speed: 2.5-3m/s
Working wind speed: 2.5-23m/s
Safe wind speed: 50m/s
Blade number: 3
Blade length: 1.8m
Turning diameter: 2.6m
Blade material :glass fibre reinforced plastics
Rated blade speed: 40R/M
Gear box : 1/7
Tower height: 4m
Control :microcomputer
System efficiency: 38%
Generator type :Three-phase Permanent Magnet
Construction: outer rotor
Material: NdFeB permanent magnets
Generator speed :250R/M
Rated Voltage :115V
Over load safety: 120%
Insulation :F
|
|
|

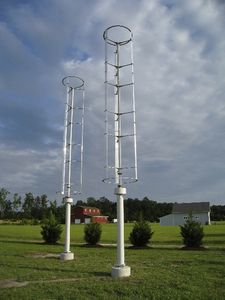

Now available in Europe, the affordable, attractive, and ultra quiet, Windspire® wind turbine gives you the power to create clean energy from the natural wind just outside your door. At only 9.1m and 1.2m wide, the Windspire wind turbine is distinguished by its sleek propeller-free design and ultra quiet operation. Designed for use where you live and work, the Windspire is currently powering homes, small businesses, schools, museums, parks, and much more.
|
|
The Skystream® 3.7 is a fully integrated, utility-connected wind generator designed specifically for homes and small businesses. In simple terms, it shows you’ve taken charge of your home’s energy needs. It’s a symbol of independence.
Product Details At a Glance
Certification: (US & Canada) UL Certificate of Compliance
Certification: (Europe) Certification Report - Grid Code Compliance (GCC)
Rated Capacity: 2.4 kW
Rotor: 12 feet (3.72 m); 50-325 RPM
Interconnection: Utility connected or battery charging
Alternator: Gearless, permanent magnet brushless
Voltage Output: 240 VAC (Optional 208 VAC)
Estimated Energy Production: 400 KWh per month at 12 MPH (5.4 m/s)
Weight: 170 pounds (77 kg)
Tower: Towers from 34-70 feet (10.4-21.3 m) are available; height is dependent by site
Warranty: Five year limited
Availability:Skystream is available now. Check with your local dealer for availability in your area.
|
|
|
|
|
|
Kilowatt Hours/Month: 200 kWh/mo at 12 mph (5.4 m/s)
Rotor Diameter: 9 feet (2.7 m)
Voltage: 24, 36, 48 VDC (high voltage avail.)
Rated Power: 1000 watts at 26 mph (11.6 m/s)
Turbine Controller: Whisper Charge Controller (included)
Warranty: 5 year limited warranty
The versatile Whisper 200 powers applications from remote homes to water pumping. Get the most out of the wind with a larger swept area. The Whisper 200’s 9-foot (2.7 m) blade has almost twice the swept area of the Whisper 100, yielding twice the energy. A high voltage model is available for transmission over long distances.
The Whisper 200 does produce more sound than it’s 100 counterpart, but it does produce almost twice the power.
In addition to its patented smooth acting side furling design, the Whisper 200 has a number of new features that make it ideal for any new or existing photovotaic system:
A new four bearing spindle for a smoother operation and longer life
An upgraded Yaw shaft that more efficiently delivers current to your batteries
New bronze bushing and larger diameter furling pin for smoother furling action
New castings that allow easy access to the stator for changing voltage
|
|
Serious power from a small wind turbine – the Whisper 500 in combination with Magnetek’s Wind Interface and Aurora Inverter synchronizes with the power in your home or office, eliminating batteries and creating enough energy to pay an average monthly electric bill.
Whisper 500 works in harsh, high wind environments with its two fiberglass reinforced blades and patented side furling design optimizing output at any wind speed. Assuming a 12 mph (5.4 m/s) wind, a Whisper 500 will produce as much as 500 kWh per month.
Kilowatt Hours/Month: 538 kWh/mo at 12 mph (5.4 m/s)
Rotor Diameter: 15 feet (4.5 m)
Voltage: 24, 36, 48 VDC (high voltage avail.)
Rated Power: 3000 watts at 24 mph (10.5 m/s)
Turbine Controller: Whisper Charge Controller (included)
Warranty: 5 year limited warranty
|
|
AIRX 400 is a wind turbine of new concept and technology. It is compact, 3 elastic shovels in carbon, is to modulate for addition of other generators in future. It is most powerful of its category, beyond 400W, is simple to install also over the roof; a simple post from 1" 1/4 does not demand tower but, is without maintenance, silent. It is complete of charge regolator 12 or 24 volts DC. 2 YEARS OF GUARANTEE - CE.
It is the wind turbine more sold the world of its category.
The new AIRX is still more reliable, silent and of greater yield.
|
|
Nominal nominal output: 20 kWatts
Maximum power: 22 kWatts
Tension: 420 Volts
Generator: Permanent magnet with boron
Diameter of the rotor: 12 m
Many pale: 3
Speed of wind of starting: 3m/s
Maximum speed of wind: 25m/s
Nominal speed of wind: 12m/s
Orientation: electronics
Height of mast: 16m
Weight of the body: 420kg
Pale entirely out of glass fiber
Protection against excessive speeds of wind: Automatic regulation
|
|
Nominal nominal output: 5000 Watts
Maximum power: 8000 Watts
Tension: 280 Volts
Generator: Permanent magnet with boron
Diameter of the rotor: 6.4 m
Many pale: 3
Speed of wind of starting: 3m/s
Maximum speed of wind: 25m/s
Nominal speed of wind: 10m/s
Orientation: electronics
Height of mast: 12m
Weight of the body: 300kg
Pale entirely out of glass fiber
Protection against excessive speeds of wind: Automatic regulation
|
|
Nominal nominal output: 1000 Watts
Maximum power: 1500 Watts
Tension: 48 Volts
Generator: Permanent magnet
Diameter of the rotor: 3 m
Many pale: 3
Speed of wind of starting: 3m/s
Maximum speed of wind: 25m/s
Nominal speed of wind: 9m/s
Orientation: passivate by rudder
Pale entirely out of glass fiber
Protection against excessive speeds of wind: Misalignment of the rotor
|
|
|
|
