Construction characteristics
Illuminotechnical characteristics
Downward bilateral wide distribution.
Lifetime (L75/B10): 30000 h. (tq+25°C)
Lifetime (L70/B10): 50000 h. (tq+25°C)
Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778.
Mechanical characteristics

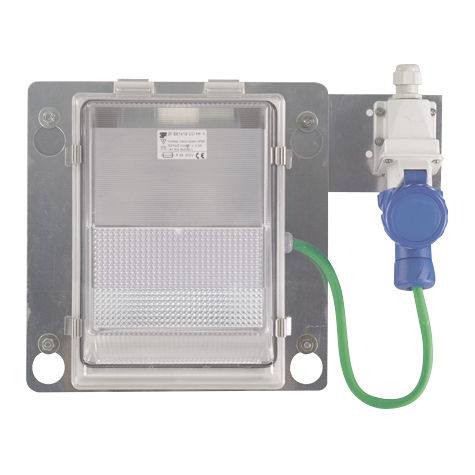

Self-extinguishing V0 polycarbonate housing, injection moulded, grey RAL 7035.
Upper base with wall mount, in galvanized steel.
Galvanized steel base anchored to housing, slotted for rapid installation/removal of luminaire.
Deep flow recuperator in specular aluminium with superficial titanium-magnesium treatment, non-iridescent.
Diffuser in transparent selfextinguishing V0 polycarbonate, UV stabilised, injection moulded with smooth outside and differentiated prismatic inner surface.
Sealing gaskets between housing and diffuser in ecological anti-aging EPDM.
Diffuser safety seal with 4 latches attaching it to the housing, in stainless steel.
Drilling template in stainless steel.
Electrical characteristics
In compliance with EN 60598-1.
Double insulated cables.
Plug/socket IP67, FG16(O)M16 (ex FG7(O)M1) 2x1.5 mm² cable, M20x1.5 cable gland in self-extinguishing polyamide.
Line input on fixed socket with M25x1.5 threaded hole and polyamide cable gland with 10-17mm diameter tightening range.
Class II.
Source characteristics
LED modules.
Color initial tolerance (MacAdam): SDCM 4.
On request
different powers
LED sources with different colour temperatures
other types of connections
fluorescent sources
