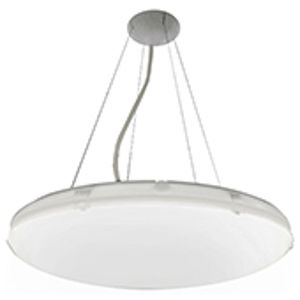

Hanging light fixture 3F PETRA

LEDroundIP65

Construction characteristics Illuminotechnical characteristics Diffuse distribution. Lifetime (L93/B10): 30000 h. (tq+25°C) Lifetime (L90/B10): 50000 h. (tq+25°C) Lifetime (L85/B10): 80000 h. (tq+25°C) Lifetime (L80/B10): 100000 h. (tq+25°C) Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778. Mechanical characteristics Housing in self-extinguishing V2 polycarbonate, UV stabilized, injection moulded, glazed. Ecologic anti-aging injected sealing gasket. Diffuser in opal PMMA, injection moulded. Gear-tray reflector unit in aluminium, painted in white polyester, fixed to the housing by quick-fastening steel devices, hinged opening. Snug fit safety snap-lock clips for diffuser mounting in transparent polycarbonate, screwdriver opening. Adjustable suspension with Rose in white polycarbonate, with stainless steel cables, 2 m long. Electrical characteristics In compliance with EN 60598-1. Entry for power-supply cable at the top by means of double-membrane sealing grommet, or side-entry after drilling. Transparent 5x1.5 mm² power-supply cable. Source characteristics Circular LED module. Color initial tolerance (MacAdam): SDCM 3. On request wiring: dimmable, CLO EP maintained emergency wiring, 1hr duration with 24hrs recharge, fuse, in compliance with EN 60598-2-22 LED module with different power levels, colour temperatures and colour rendering index Applications Environments: transit areas, great halls. Environments where ceiling indirect lighting and direct lighting supply a visual comfort.
