Construction characteristics
Illuminotechnical characteristics
Wide, medium, concentrated symmetric elliptical distribution.
Lifetime (L93/B10): 30000 h. (tq+25°C)
Lifetime (L90/B10): 50000 h. (tq+25°C)
Lifetime (L85/B10): 80000 h. (tq+25°C)
Lifetime (L80/B10): 100000 h. (tq+25°C)
Photobiological safety RG0, risk exempt, in compliance with IEC 62471, IEC/TR 62778.
Mechanical characteristics

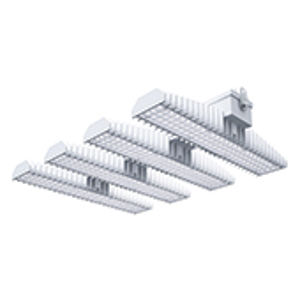

Passive modular heatsinks in die-casted aluminum, painted in white color.
To optimize the thermal management of the LED module, the heatsinks are oversized and provided with self-cleaning of cooling fins.
Wiring body in aluminum and galvanized steel anchored solidly to the sinks and thermally separated.
3F Lens lenses with high luminous efficiency, transparent PMMA, fixed to the LED modules.
Fixing brackets in stainless steel.
Electrical characteristics
Quick connection in polycarbonate with M20x1,5 cable gland, to access the terminal block positioned on a removable runner.
Power unit positioned on a separate compartment by the LED module to ensure optimum temperatures of cabling components, to be inspectable and maintainable.
Source characteristics
Linear LED modules.
Color initial tolerance (MacAdam): SDCM 3.
On request
different power levels, colour rendering indices and colour temperatures
double quick connection
polycarbonate lenses (IK08)
wiring: twin-circuit, CLO
linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology
HACCP versions for use in the food industry
