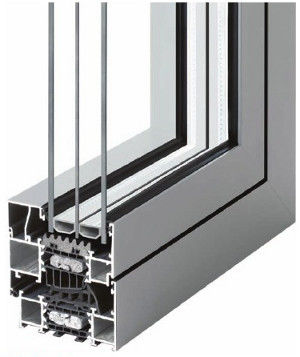

Aluminum window profile STAR

STAR is a window and door system. The system profiles have a three-chamber structure. The feature that distinguishes this system the thermal conductivity coefficient. Thanks to the new generation of insulating inserts obtained coefficient Uf between 0,6-1,23 W / m²K. The value of this further improves the use of a thermal chamber with a width of 45 mm, made of innovative materials. The structural depth of 90 mm for the frame and 99 mm for the wings. Possible infill thickness from 17 mm to 82 mm. A novelty in the system is Crimping of door hinges roller system with very high load capacity. The Star system also uses a new standard overlap profile with glass. Increased depth significantly improves the thermal and structural performance of the system.
