APPLICATION

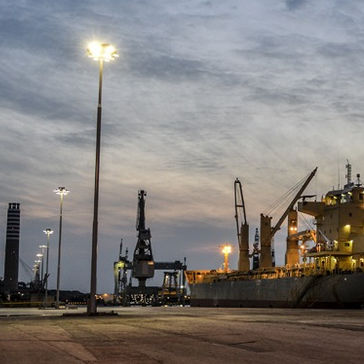

Street, urban and floodlighting.
MECHANICAL CHARACTERISTICS
Fixing in extruded aluminium EN AW - UNI EN 755.
Lower frame and canopy in die-cast aluminium UNI EN 1706.
Heak-sink in extruded aluminium.
Screen in flat tempered glass 4mm thickness high transparency.
Optical unit in aluminium finish surface 99.95% with vacuum-sealed deposition. Aluminium Class A+ (DIN EN 16268).
Removable metal gear plate.
Metallic cable gland M20x1.5mm - IP68.
Integrated cable clamp.
Protection degree IP66 | IK08.
Operating temperature:
- 40°C / + 25°C
ELECTRICAL CHARACTERISTICS
Insulation class: I, II.
Power supply: 220-240V - 50/60Hz.
LED current: 525/700mA.
Power factor: > 0.9 (at full load).
Connection for cables max. section 2.5mm2
Integrated overvoltage protection:
SPD integrated 10kV-10kA, type II, with LED signal and thermo fuse to disconnect load at the end of life.
Optical unit lifetime (Tq=25°C, 700mA):
≥100.000hr L90B10
≥100.000hr L90, TM-21;
