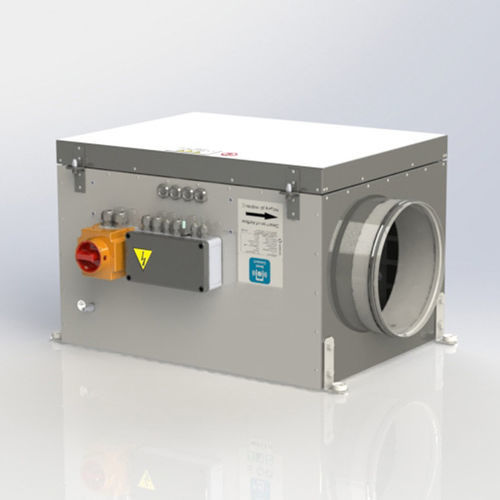

Wall-mounted exhaust fan VCZ
roofductfloor

wall-mounted exhaust fan
wall-mounted exhaust fan
wall-mounted exhaust fan
wall-mounted exhaust fan
wall-mounted exhaust fan
Add to favorites
Compare this product


Characteristics

Installation
duct, wall-mounted, roof, floor
Sector
commercial, residential
Material
galvanized steel
Location
outdoor
Color
gray
Other characteristics
acoustic
Air flow

530 m³/h, 820 m³/h, 1,500 m³/h, 2,100 m³/h, 3,500 m³/h
(18,716.8 ft³/h, 28,958 ft³/h, 52,972 ft³/h, 74,160.8 ft³/h, 123,601.3 ft³/h)

Noise level

66 dB, 68 dB, 71 dB, 78 dB, 79 dB

Weight

22 kg, 24 kg, 32 kg, 37 kg, 64 kg
(48.5 lb, 52.91 lb, 70.55 lb, 81.57 lb, 141.1 lb)

Height

350 mm, 400 mm, 550 mm, 650 mm, 740 mm
(14 in, 16 in, 22 in, 26 in, 29 in)

Width

600 mm
(24 in)

Length

543 mm, 633 mm, 832 mm
(21 in, 25 in, 33 in)

Power

87 W, 157 W, 168 W, 445 W, 510 W

Description

The VCZ attic exhaust fans offer several models with capacities from 530 m³/h up to 3 500 m³/h for the equipment of collective dwellings, offices, schools or other types of buildings. They are designed for an installation in attics, on the floor, on the wall or fixed to a beam. The VCZ attic exhaust fans are characterized by their solidity and by an excellent energy efficiency, thanks to the use of high-performance electronic commutation motors and to an integrated pressure control device. Low energy consumption: Electronic Commutation motor associated with an automatic pressure control device. Solidity and reliability: metal design, made in Germany. DCV compatible: integrated automatic pressure control device, optimizing the DCV performance. Silent: acoustic foam on the entire envelope and sound trap available on request, optional. Easy to install: many available adaptation parts, possibility of custom-built construction. Easy to maintain: motor easily accessible by a trapdoor to clean the blades. An easier maintenance The VCZ attic exhaust fans are equipped with a trapdoor allowing the direct access to the motor for the propeller cleaning. The latches can be padlocked. Specific versions for outdoor installations The VCZ fan range offers versions for outdoor installations including a rain protection cover as presented on the picture. Pressure control device A system of pressure control is integrated in the fan, allowing to define easily the pressure at working. Pressure measured by the integrated pressure gauge is displayed on digital screen. It is automatically regulated, optimizing the system working with demand controlled exhaust units.
