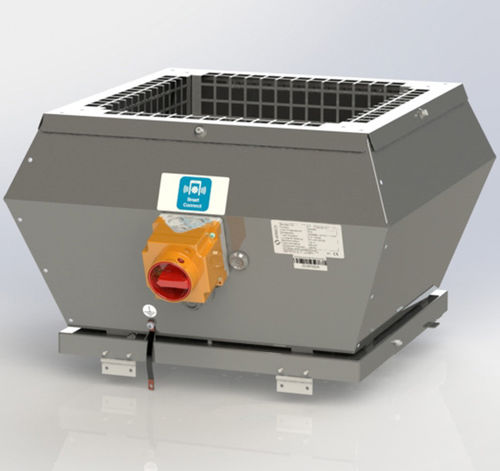

Roof exhaust fan VTZ
ductcommercialresidential

roof exhaust fan
roof exhaust fan
roof exhaust fan
roof exhaust fan
roof exhaust fan
Add to favorites
Compare this product


Characteristics

Installation
duct, roof
Sector
commercial, residential
Material
galvanized steel
Location
outdoor
Color
gray
Other characteristics
acoustic
Air flow

Max.: 6,800 m³/h
(240,139.7 ft³/h)

Min.: 345 m³/h
(12,183.6 ft³/h)

Noise level

67 dB, 71 dB, 72 dB, 75 dB, 78 dB

Weight

Max.: 57 kg
(125.66 lb)

Min.: 10 kg
(22.05 lb)

Height

290 mm, 338 mm, 400 mm, 577 mm
(11 in, 13 in, 16 in, 23 in)

Width

340 mm, 440 mm, 600 mm, 707 mm
(13 in, 17 in, 24 in, 28 in)

Length

445 mm, 547 mm, 720 mm, 954 mm
(18 in, 22 in, 28 in, 38 in)

Power

Max.: 750 W

Min.: 87 W

Description

The VTZ fans range offers several models with capacities going from 345 m³/h up to 6 800 m³/h for the equipment of collective dwellings, offices, schools or other buildings. The VTZ fans are designed for an outdoor installation, in terrace or on a pitched roof. Many connecting parts are available to adapt to different encountered cases. The VTZ fans are characterized by their solidity and by an excellent energy efficiency, thanks to the use of high-performance electronic commutation motors and to an integrated pressure control device. Low energy consumption: Electronic Commutation motor associated with an automatic pressure control device. Solidity and reliability: metal design, made in Germany. DCV compatible: integrated automatic pressure control device, optimizing the DCV performance. Silent: acoustic foam on the entire envelope and sound trap available on request, optional. Easy to install: many available adaptation parts, possibility of custom-built construction. Easy to maintain: easy cleaning of blades after swinging the fan. Electronic commutation motor for minimal consumption The electronic commutation motor of the VTZ roof exhaust fan offers an optimum consumption all the time. Associated to the pressure control device, it automatically adjusts the consumed power to the requested airflow, while maintaining a constant pressure. The motor integrates an electric cut of switch in case of high temperature and an output which can be used to diagnose a possible default. A wide range of adapters for all cases Aereco offers many adaptation parts made in aluminium or galvanised steel for pitched roofs and for the variable geometries of ducts.
