Microchannel Condenser Range 12-165kW
With microchannel coil technology optimised for R410A refrigerant, the new air cooled Microchannel Condenser range has been designed to optimise performance and ensure the lowest possible life cycle costs.
Key technical data
• 12 – 165kW nominal cooling capacity
• Vertical or horizontal air discharge
• Single circuit
• 16 models
• 5 case sizes
• Designed and optimised for R410A refrigerant
• AC axial fans with optional EC fan technology
for more efficiency at part load
• Temperature range of -20°C up to 52°C with
extended temperature ranges down to -32°C
with a low ambient kit, and down to - 40°C with
an extra low ambient kit
• Equipped with the latest controls developed
by Airedale to facilitate automation and
optimisation of the system.

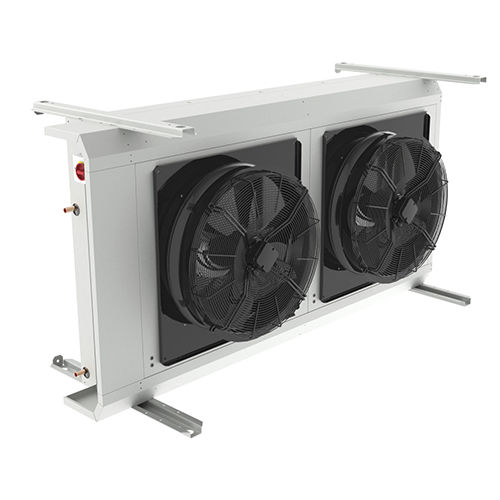

Air Cooled Condensers & Dry Coolers CR 12 – 195kW (R410A), C/CS 11 – 105kW DR10 - 100kW
Designed and optimised for R410A in 8 model sizes (CR) with total heat rejection 12-174kW. R407C range includes 10 model sizes (C/CS). Each unit is available in either horizontal or vertical air discharge orientation and have an extremely compact footprint and slimline design. Large surface area coil is ideally positioned to optimise airflow and heat transfer.
Units within the range are exempt from Ecodesign
Microchannel condenser range benefits
Increased heat transfer for increased efficiency
Microchannel coils have a smaller volume, lowering condenser coil refrigerant charge, by up to 75%. As such they provide a more environmentally friendly and cost effective solution.
Epoxy coated for corrosion protection and therefore longer life expectancy
