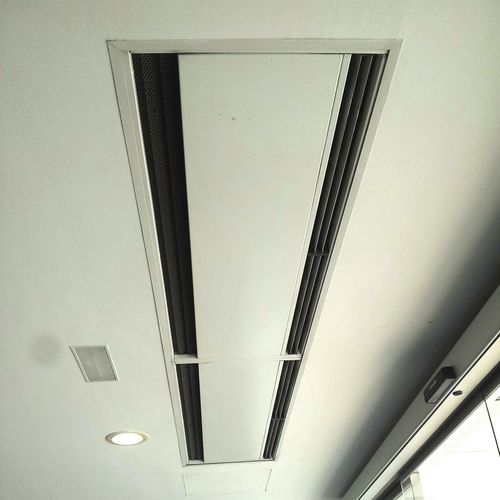

Floor-mounted air curtain DAM

ceiling-mountedindustrialcommercial

DAM is an air curtain from the standard range that stands out for its versatility and the design of its front part. The classic suction grille has been efficiently replaced by a front panel that can be customised with logos, signage, graphics or images and a double air intake at the top and bottom of the curtain. With this solution, the need for grille maintenance is eliminated and its decorative front panel provides a modern and clean view of the equipment. DAM TWIN air curtain system: This consists of two DAM air curtains facing each other vertically with the jets reversed. This creates a double jet separation zone at the door. The DAM TWIN air curtain system is an optimal solution in installations with very adverse situations where the air curtain can be affected by strong wind, high indoor/outdoor temperature difference, several doors, more than one floor, large halls or high pressure difference, among others. Self-supporting casing construction made of galvanized steel plate, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request. Front panel with option to customize and the possibility of including personalized logos, signs, graphic designs, images, etc. The inlet areas are located behind the front panel. They do not need maintenance. Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side. Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans. “P” type with water heated coil.
