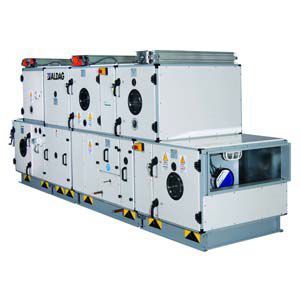

Commercial air handling unit AKS

industrial

ALDAĞ Air Handling Units (AHU) are designed to meet the customer's specific HVAC requirements. ALDAĞ Air Handling Units are available with airflow range from 1.500 m3/h up to 90.000 m3/h. AHU conditions the air to achieve the desired indoor air quality, temperature and humidity. ALDAĞ Air Handling Units are rapidly designed and delivered for project basis to the customer. ALDAĞ Air Handling Units are a combination of the following main sections: 1. Exhaust Fan Section, 2. Mixing Box Section, 3. Bag Filter Section, 4. Heating-Cooling Section, 5. Heat Recovery Section, 6. Humidifier Section, 7. Supply Fan Section, 8. Sound Attenuator Section ALDAĞ AKS Air Handling Units are EUROVENT (AKS-600 AKS-2535) certified and tested in accordance with DIN 1946 /4: 2008, DIN EN ISO 5167 Standard. • Maximum deflection for mechanical strength of the casing is compatible with EN 1886 Standard. The positive and negative pressure is compatible with Dl (M) Class. Maximum Leakage between -400 Pa and +700 Pa is compatible with L1 Class. Filter By-Pass Leakage is compatible with F9 Class. There exist two different models of casing for AHU, certified by Eurovent so thermal conductivity resistance is compatible with T2 &T3 Class. Thermal Bridge is compatible with TB1&TB2 Class. • The panels and service doors are double skinned &made of submersion galvanized steel sheets. The outer skin steel sheets are RAL 9002 polyester powder coated. The steel thickness is minimum 0,9 mm for outer skin sheets and 0,8mm for inner skin sheets. • AII the interior surfaces of the casing are suitable for washing and cleaning and completely smooth without any welding at the joints.
