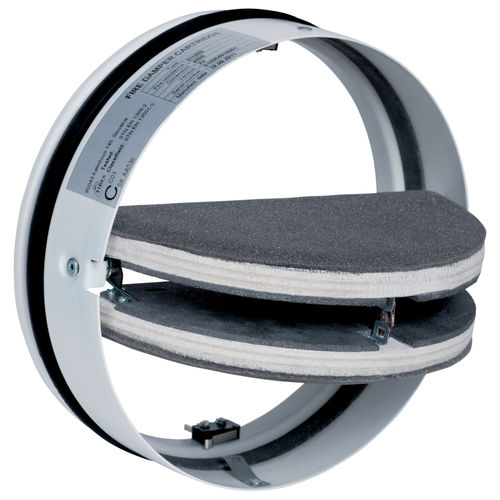

CE-marking compliant in accordance with EN 15650.
CF1 = EI 60 S – (Ve Ho i o) under 300 Pa.
CF2= EI 120 S – (Ve Ho i o) under 300 Pa.
Add a metallic core grille SR 143 in front of a CF1 or CF2 terminal fire damper to obtain a 1-hour rated fire-resistant grille EI 60 S or a 2-hour fire resistant grille EI 120 S.
Element to be fitted in an air duct of same rated diameter.
Possibility of end of travel signal contact on request.
Available in Ø 100, 125, 150, 160 and 200 mm.
FIELD OF APPLICATION
• The terminal fire dampers meet the requirements
laid down for damper grilles as laid down in Article
CH42 of the Fire Regulations.
DESCRIPTION
• Element to be fitted into a duct of the same rated
diameter.
• CE certified as per EN15650.
• Fire protection rating:
- CF1 = EI 60 S - (Ve Ho io) at 300 Pa,
- CF2 = EI 120 S - (Ve Ho io) at 300 Pa.
Fire damper grilles
For a fire damper grill: 1 hour- EI 60 S or 2 hour - EI
120 S add an SR 143 metal core grille to the front
of the selected cartridge
DESCRIPTION OF SR 143
• Adjustable core.
• Steel - white epoxy painted finish, RAL 9010.
• Slots into the duct.
• Supplied with connector sleeve.
• Possible end of travel contact (on request).
