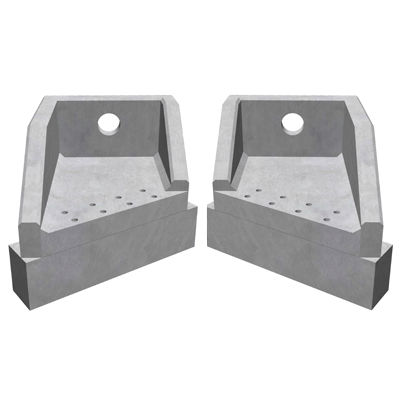

Precast head wall RSFA12

reinforced concrete

Althon RSFA12 Angled Precast Headwalls are Sewers for Adoption compliant precast concrete headwalls for outfalls discharging into ponds, swales, ditches, beaches and rivers. RSFA precast headwalls come with the option of two thicknesses of toe, 300mm and 500mm, each of which is available in three depths. RSFA 12 angled precast concrete headwalls are available with both sloped and horizontal wingwalls and are designed to suit plastic or clay pipes up to 225mm. Althon RSFA12 precast headwall units can be pre-fitted with a range of accessories such as flap valves, penstocks, Kee Klamp® handrails and a selection of gratings depending on the application. Our RSFA12 precast headwalls are manufactured in accordance with Severn Trent Water Standard detail STD6002 All RSFA Headwalls are cast with the opening in the back wall to suit the size and type of pipe being used at the invert level required.
