Interior panel FLOORBOARDS

constructionparticle board

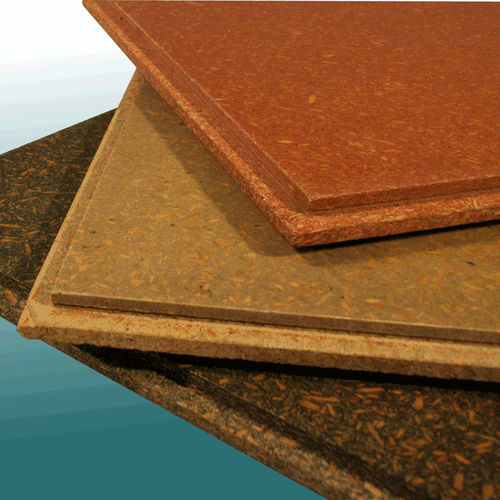

The AMROC panel stands up to the highest expectations when used as drywall, and features superior walking comfort, compressive strength and acoustic insulating characteristics. The "one man" panel in a 1,250 x 625mm size has proven its use. It has a sanded surfaces on both sides, and features a tongue and groove edge profile on all sides. The panel can be used in floating installations, requiring the panels to be glue-bonded at the profiled edges at all times. A felt substrate layer (or similar) is used as a footfall sound insulator and increases walking comfort. Furthermore, a vapor diffusion barrier must be installed under the floorboard. As an additional installation option, the panels can be mounted to floor beams for modernization work on old structures. For this application, the panels are also bonded to each other with glue and are additionally mounted to the sub-structure with screws. An important consideration is that seams should not be freely floating between beams. On floor beam installations, the required panel thickness is determined as a function of the foottraffic and the support centers, in consideration of the required safety parameters (see load tables).
