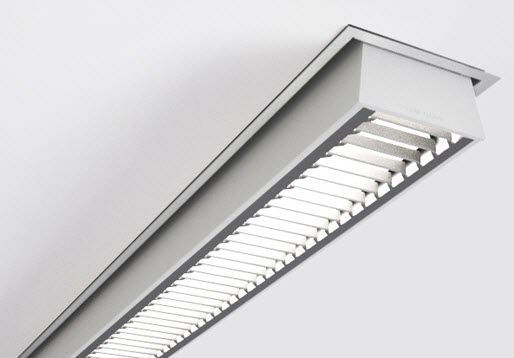

Linear ceiling mounted fluorescent luminaire (for offices)
TIME by Bengt Källgren
ATELJE LYKTAN
Material: Hot-dip galvanised steel body. Luminaire housing and end caps in aluminium.
Standard colour: Natural anodised or White matte textured paint finish. Body White matte NCS 0500 G50.
Technical Information:
Assembly: Facility for through-wiring with quick connector.
Hole dimensions: 90x590 / 890 / 1190 / 1490 mm. Minimum recess depth: 73 mm.
Max. panel thickness: 35 mm.
Connection: Halogen-free cable, free cable end 2.3 m 3x0.75 mm², dimmer 5x0.75 mm².
Reflector: Metallised aluminium MIRO 5.
Other: Luminaire is fitted with multi-ballast. Lamps and glare control to be ordered separately. Snap-in connectors Wieland GST 18, see accessories.
Standard colour: Natural anodised or White matte textured paint finish. Body White matte NCS 0500 G50.
Technical Information:
Assembly: Facility for through-wiring with quick connector.
Hole dimensions: 90x590 / 890 / 1190 / 1490 mm. Minimum recess depth: 73 mm.
Max. panel thickness: 35 mm.
Connection: Halogen-free cable, free cable end 2.3 m 3x0.75 mm², dimmer 5x0.75 mm².
Reflector: Metallised aluminium MIRO 5.
Other: Luminaire is fitted with multi-ballast. Lamps and glare control to be ordered separately. Snap-in connectors Wieland GST 18, see accessories.
