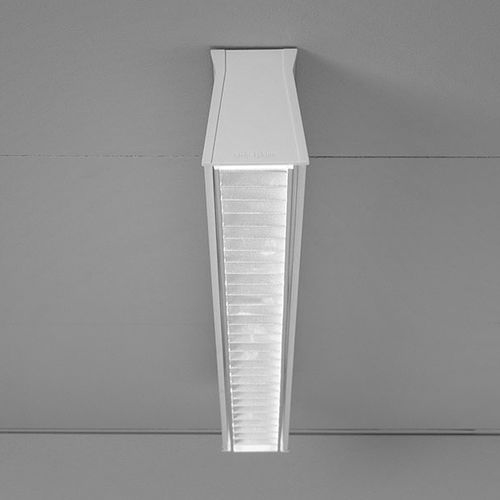

Contemporary ceiling light TIME

linearaluminumacrylic glass

Material: Frame in extruded aluminium. End caps in cast aluminium. Installation: Frame snaps against the enclosed ceiling profile. System: First luminaire is supplied with end caps. Eccentric lock connects luminaires mechanically. Connection: Single luminaire is supplied with halogen-free cable 3G0.75 mm², or 5G0.75 mm² (dimmer). System start is supplied with halogen-free cable 3G1.5 mm², or 5G1.5 mm² (dimmer). Cable length 1, 2, 3, 4 m and optional quick connector is selected in configurator. System is supplied excluding cable. Quick connector for electrical connection with system luminaire or system start luminaire. Standard finish: White NCS S0502-Y textured or Grey RAL9006 textured. Diffuser: Microprismatic acrylic glass in combination with optical film from BrightView, reflector in MIRO 5. Optical diffuser in MIRO material in combination with optical film from BrightView. Micro lamella louvre in lacquered aluminium in combination with optical film from BrightView. The luminaire is also offered with microprism excluding optical film. Light source: Includes LED light source, colour temperature 3000K or 4000K. Colour rendering CRI 80 or CRI 90. Chromaticity tolerance max 3 SDCM. Rated lifetime: L90B10 50 000h. Driver and light regulation: Equipped with On/Off driver or DALI driver with light regulation 1-100%. Set value is maintained in event of power cut. With DALI driver, Touch DIM via external push botton and Corridor Mode is possible. The luminaire is equipped with Philips latest generation LED driver Xitanium Touch and DALI to regulate the light with amplitude modulation creating a flicker-free light.
