Aluminium grid panel for suspended ceiling
H40-H50 WITH DETACHEMENT
Atena spa

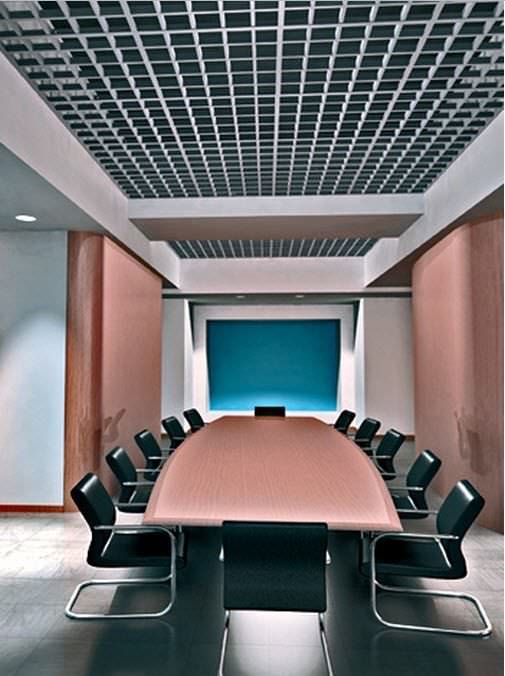

Realized with open cell base 10 mm tiles, laid on visible structure T24, the false ceiling H40 and H50 with detachment gives a high esthetical value to the structure and underlines the modular effect with the difference between the base 10 of the cell and the T24 of the structure. Easy to install, the open cell tiles H40-H50 with detachment, can be supplied assembled, ready to be laid over the structure. This system is fast to install and makes easier the access to the interspace.
TILES:
Tiles 600x600 are made up by elements (TM and TF) with a ‘U’ section base 10 mm and high 40 mm or 50 mm, which intersect themselves to build different meshes.
STANDARD DIMENSIONS:
600x600 mm | Other dimensions on request
MATERIALS:
5/10 pre painted aluminium
VISIBLE STRUCTURE:
Steel Strong Classic base 24
Steel Strong Easy base 24
Steel Strong Easy Antiseismic
Steel Strong Easy Fox base 24
TILES:
Tiles 600x600 are made up by elements (TM and TF) with a ‘U’ section base 10 mm and high 40 mm or 50 mm, which intersect themselves to build different meshes.
STANDARD DIMENSIONS:
600x600 mm | Other dimensions on request
MATERIALS:
5/10 pre painted aluminium
VISIBLE STRUCTURE:
Steel Strong Classic base 24
Steel Strong Easy base 24
Steel Strong Easy Antiseismic
Steel Strong Easy Fox base 24
