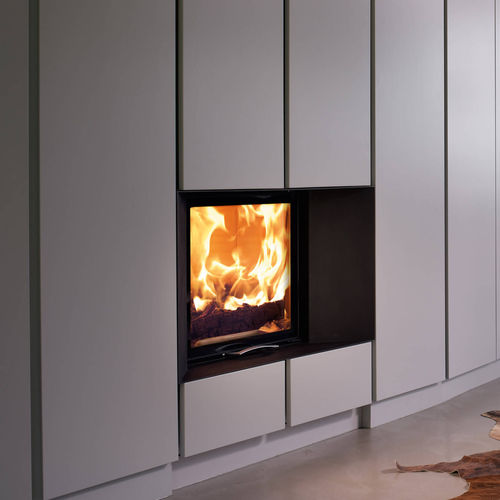

Extraordinary ideas are best implemented with an Austroflamm fireplace insert.
Dimensions
Depth [mm]
537
Equipment
curved glass
Flat
DIMENSIONS AND WEIGHTS
Height [mm] 1245-1445
Width [mm] 739
Depth [mm] 537
Weight [kg] 168
Width (body installation dimension) [mm] 650
Door frame, height [mm] 510
Flue pipe outlet, diameter [mm] 180
Insulation layer thicknesses to the installation floor [mm] (Promasil 950 KS) 60
Insulation layer thicknesses lateral / rear [mm] (Promasil 950 KS) 90
Insulation layer thicknesses to the ceiling [mm] (Promasil 950 KS) 90
Ceramic flues - max. length [m] 4
HEAT OUTPUT
Nominal heat efficiency [kW] lt. EN test EN 13229 8
Heat output, minimum [kW] / Maximum heat output [kW] 4-11
Energy efficiency category A+
Circulating air cross-section without / with metal secondary heating surface [cm²] 700/1000
FEATURES
Double pane x
Sliding door yes
DATA FOR THE CHIMNEY SWEEP
Total flue gas flow [g/s] 7.74
Flue gas temperature [°C] 298
Minimum feed pressure at nominal heat efficiency [Pa]
