6-SHELF PROOFING CABINET FOR DONUT PRODUCTION AND GENERAL BAKERY USE
6-shelf version of EP18/24 proofer, used for making yeast-raised donuts on a Donut Robot® Mark II or Mark V system.

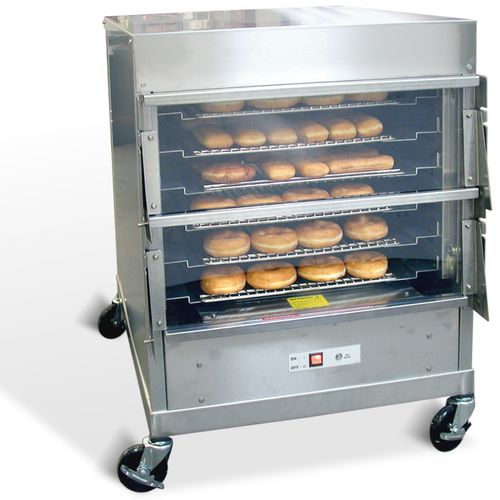

Based on the EP18/24 proofer, the TZ-6 is a smaller version that works with Belshaw's Donut Robot Mark II (or Mark V) system. Donuts are given a warm, humid environment in which to rise with adjustable heat and humidity.
The TZ-6 has 6 shelves, able to hold 2 dozen standard size donuts each. Total capacity is 12 dozen donuts, and the TZ-6 can process 24 dozen donuts per hour at a nominal proofing time of 30 minutes.
2 plexiglass doors double as viewing windows, allowing the operator to check at any time to see how donuts are rising. Trays can be inserted or withdrawn one at a time.
The TZ6 is ETL listed for compliance to UL-197, NSF-4 and CSA 22.2. See PDF spec sheet for details.
Belshaw’s TZ6 cabinet proofer is designed for quality
and convenience when proofing donuts, cinnamon rolls,
and similar products. The TZ6 is a robust, go-anywhere,
use-anywhere proofer that can be rolled into any convenient
position for loading or unloading without missing a beat.
The TZ6 proofer is designed for for use with these Belshaw
fryers:
•616B
• Cut-N-Fry
• Donut Robot Mark II
• Donut Robot Mark V
STANDARD FEATURES
•6 shelves with 3" shelf spacing
• Capacity 24 dozen donuts/hour at a proofing time of 30
minutes
•2 plexiglass doors (enables the operator to put in or take out
one or two screens, without opening a full height door)
• Accepts Proofing Trays (Belshaw Part# FT42-0052) for Donut
Robot® Mark II / Mark V
