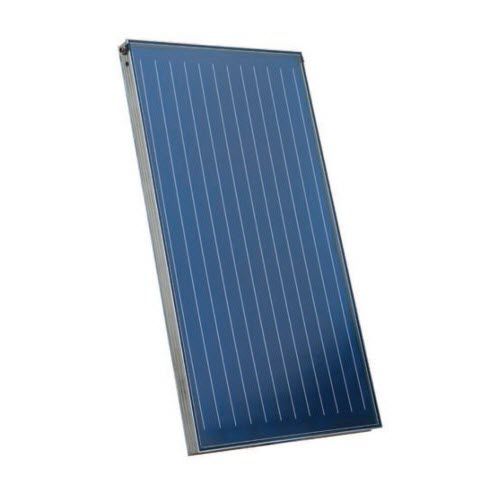

Flat thermal solar collector SCF-25B

for water heatinginsulatedmodular

■ Collector with sealed aluminium frame - 2,5 m2. ■ Highly-selective aluminium absorber area. ■ Complete with anti-irradiation film to be taken away at the activation of the system. ■ Insulation in rock wool (40 mm). ■ Collector stagnation temperature: 197 °C. ■ Collector absorption: 95%. ■ Possibility to connect up to 6 collectors in a series. ■ This solar collector conforms to the UNI 12975. ■ Connection between collectors by means of 2 floating couplings.
