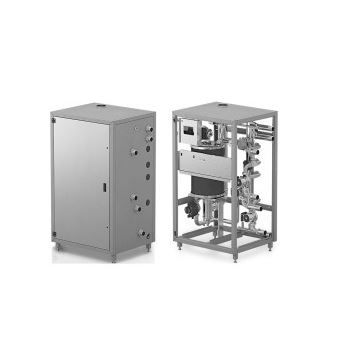

Gas boiler POWER PLUS BOX 1001

residentialoutdoorcondensing

• Stand-alone floor standing condensing boiler 115 kW with preassembled hydronic header and multi-zones kit • Painted steel BOX for indoor installations with ventilation air intake • Stainless-steel BOX (inox) for outdoor installations with sloping top cover and ventilation air intake • Efficiency ★ ★ ★ ★ according to EEC 92/42, ensuring low running costs • Low Nox: class 5 (UNI EN 483). • Compact dimensions • Ready for installation • Power Plus Box 1001 is a floor-standing condensing boiler available in the following models: - Power Plus Box 1001 INT (for indoor installation, painted box) - Power Plus Box 1001 EXT (specific for outdoor installation, stainless-steel box). • This compact boiler is ready for installation and consists of: boiler unit, A-Class modulating pump, hydraulic separator, ISPESL* hydraulic manifold with safety devices and flues collector • Heat-generator also includes: system drain tap, exchangers drain tap, gas tap, condensate drain collector, safety valve, air vent, external probe, high and low temperature probes, domestic water probe and LPG conversion kit • High flexibility of installation: possibility of managing one direct zone, one mixed zone and a DHW tank through the electronic board of the master boiler. Specific accessories are available to control more mixed zones. * ISPESL = Italian safety certification Institute
