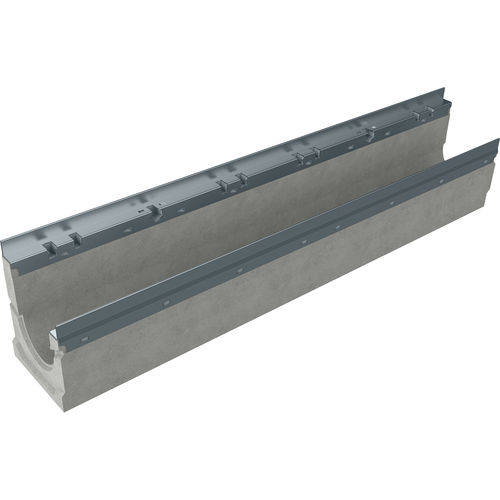

Drainage channel with grating BGU-Z FA 100

with central slotfiber-reinforced concretegalvanized steel

Channel with galvanized steel edges The BGU-Z facade channel is produced with different levels of channel walls and laid directly on the facade. The advantage for continuous glas facades is, that in view of the building only glas can be seen. The annoying window frames disappear behind the channel element (top edge channel = top edge window frame). Another benefit is that both the adjacent pavement surface and the accumulating facade runoff can be drained with a channel system. Technical data: System - BGU-Z FA 100 length - 1000 mm overall width - 163 mm nominal width - 100 mm slope - without slope overall height - channel 215 mm weight without grating channel - ca. 39.45 kg channel - ca. 39.45 kg
