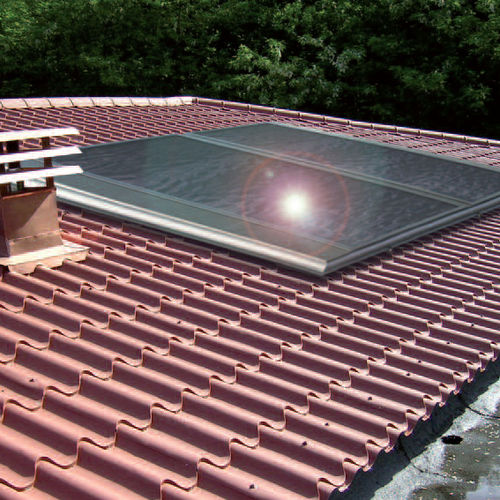

flat solar thermal collector / for water heating / insulated / for roofs
ECOSOLAR CX6 Bongioanni Caldaie

{{requestButtons}}

Characteristics

  • Technology:

    flat

  • Function:

    for water heating

  • Other characteristics:

    insulated, for roofs, with aluminum frame

Description

Main characteristics

Quality: choice of top materials for this technically perfected state-of-the-art flat panel collector
Functionality: proper dimensions, structure and constructive details
Reliability: inside manufacturing , assembly and final control
Extremely robust collector housing made from a dimpled self-supporting metal construction, solid side frame for mechanical protection, aesthetical finish, securing and accessories introduction
Full-surface copper absorber with a highly selective coating
Inside insulation by mineral wool
Selective absorber ( Tinox )
Horizontal or vertical versions for installation on a roof, within a roof or on a flat roof
Possibility to assemble up to 20 collectors in series for larger systems
Simple and quick installation by means of an easy-to-use mounting system
Fully made in Italy ( design and production)

Selective absorber Cu/Cu , laser welded
Effective absorber area 2,20 m2
Glass area 2,25 m2
Gross collector area ( frame included ) 2,50 m2
9 pipes , diameter 8 mm
Head tubes , diameter 22 mm
Frame by painted aluminium
Back insulation by mineral wool, depth 60 mm
Collector cover is made from 4 mm thick solar safety extra light tempered glass
Antitorsion connector on the head tubes
Certified Solar Keymark
10 years warranty
