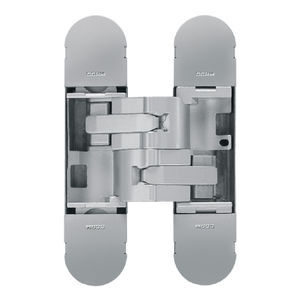

Door hinge / zamak / fiberglass / concealed
3D : 1130S Ceam Amadeo Spa

Characteristics

  • Product applications:

    door

  • Material:

    zamak, fiberglass

  • Technical characteristics:

    concealed

Description

CONCEALED HINGE, ADJUSTABLE ALONG 3 INDEPENDENT AXES
made of zamak for doors with 30 mm minimum thickness
total length 134 mm
depth only 21 mm
3-way adjustment:
Y - vertical ± 2.5 mm
X - horizontal ± 1 mm
Z - depth -1,5, +2,5 mm
depth adjustment can be doubled
fire resistant certified (35 minutes)
product certification no.020AW/0, classification 3-6-1-3/3-4
load capacity up to 60 kg with three hinges installed
galvanized steel plates cover the adjustment and clamping screws
same slot on door and frame
