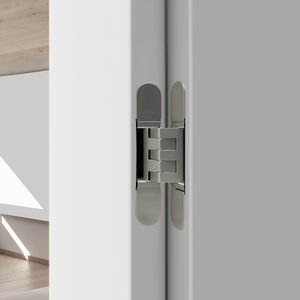

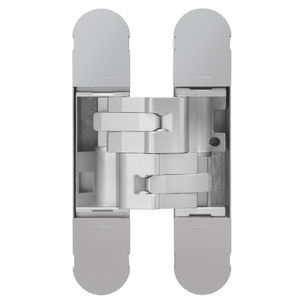

Door hinge / zamak / concealed
3D : 1230S Ceam Amadeo Spa

Characteristics

  • Product applications:

    door

  • Material:

    zamak

  • Technical characteristics:

    concealed

Description

CONCEALED HINGE, ADJUSTABLE ALONG 3 INDEPENDENT AXES
in the center of the door thikness (from 35 to 45 mm) : reversible
made of zamak
total length 130 mm
depth only 21 mm
3-way adjustment:
Y - vertical ± 3,0 mm
X - horizontal ± 1 mm
Z - depth -1,5, +3 mm
load capacity up to 70 kg with three hinges installed
galvanized steel plates cover the adjustment and clamping screws
same slot on door and frame
