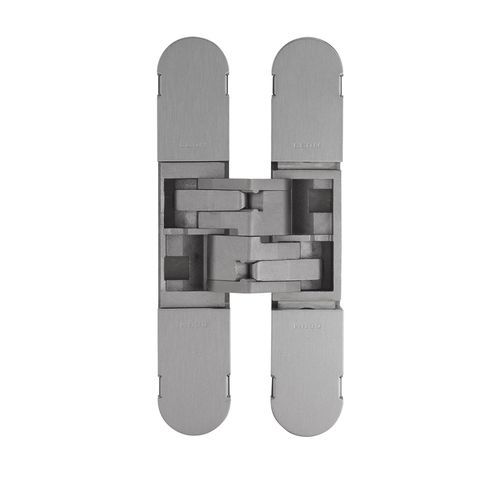

Door hinge / stainless steel / concealed
3D : 1030 INOX Ceam Amadeo Spa

Characteristics

  • Product applications:

    door

  • Material:

    stainless steel

  • Technical characteristics:

    concealed

Description

CONCEALED HINGE, ADJUSTABLE ALONG 3 INDEPENDENT AXES
made completely of stainless steel AISI 304L
for doors with 30 mm minimum thickness
total length 134 mm
depth only 21 mm
3-way adjustment:
Y - vertical ± 2.5 mm
X - horizontal ± 1 mm
Z - depth min 2, max 5 mm
load capacity up to 70 kg with three hinges installed
same slot on door and frame
suitable for corrosive environment installation
