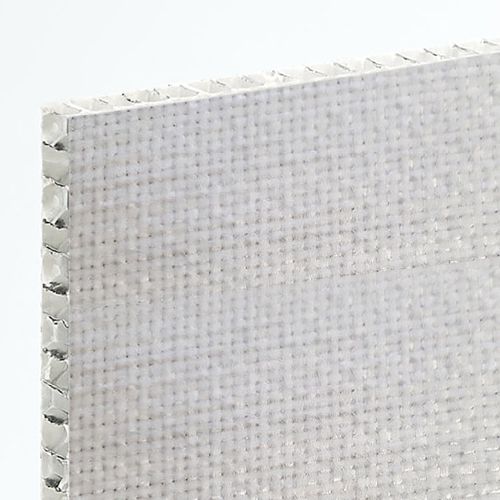

Facade sandwich panel ALUSTEP 500 SLfor floorfor false ceilingfiberglass facing
Add to favorites
Compare this product
Characteristics
- Applications
- for facade, for floor, for false ceiling
- Facing material
- fiberglass facing
- Core material
- aluminum honeycomb core
- Width
1,250 mm, 1,500 mm
(49 in, 59 in)- Length
2,500 mm, 3,000 mm
(98 in, 118 in)- Thickness
Min.: 3 mm
(0.12 in)Max.: 80 mm
(3.15 in)
Description
A - SKIN IN BIDIRECTIONAL GLASS FIBRE FABRIC
impregnated with epoxy resin 490g/m2
B - CORE IN ALUMINIUM HONEYCOMB
(Alloy series 3000*) with hexagonal cells
Diameter in inches: Ø1/4”, Ø3/8”**
Foil thickness: from 50 to 70 microns
Thickness starting from 3 mm to 80 mm
* To Aluminium alloy series 3000 belong: Aluminium alloy 3003, Aluminium alloy 3005, Aluminium alloy 3103, Aluminium alloy 3104
** Ø3/8” on request
* Tested by external Laboratory
** Tested by Internal Laboratory
‡ All values refer to a panel made of aluminum honeycomb with a cell diameter 6 mm 56 kg/m3 and epoxy adhesive
† Sample dimension with 4 support points (L, W) 540x540; distance among the lower points 500mm.
