Interior sandwich panel COMPOCEL® ALU-RIS, ALU-MAN

for floor2 aluminum facesaluminum honeycomb core

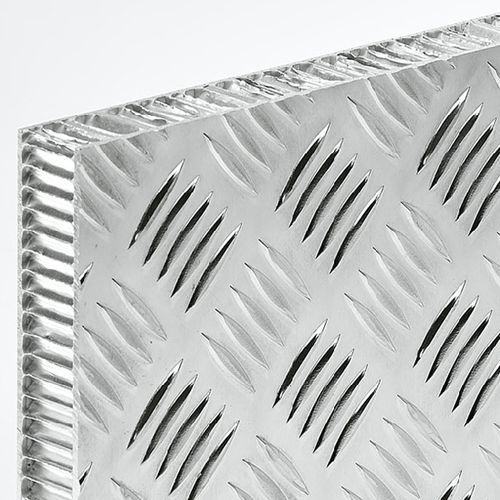

COMPOCEL® FLOOR ALU-RIS, ALU-MAN is an aluminium honeycomb core bonded with two aluminium skins. The upper face (thickness from 2mm) can be chosen among different antiskid/ anti-slip coatings (almond pattern, rice corn pattern, etc.). As this panels is often used as flooring, where superior mechanical properties are required, the preferred thickness of the aluminium foil is 70 microns (high density), bringing the total thickness of the panel up to 20mm. A - ALUMINIUM SKINS with anti-slippery coating from 2mm B - STRUCTURAL ADHESIVE C - ALUMINIUM HONEYCOMB CORE (Alloy series 3000*) with hexagonal cells Foil Thickness: 70 microns D - ALUMINIUM SKINS Raw aluminium from 1mm thickness On request: - Other thicknesses, - Special alloys and coating and RAL colours. * To Aluminium alloy series 3000 belong: Aluminium alloy 3003, Aluminium alloy 3005, Aluminium alloy 3103, Aluminium alloy 3104 Certified version COMPOCEL FLOOR ALURIS-ALUMAN must be required while asking for a quotation. Certified products must be required in advance and might have a price surcharge due to certified materials.
