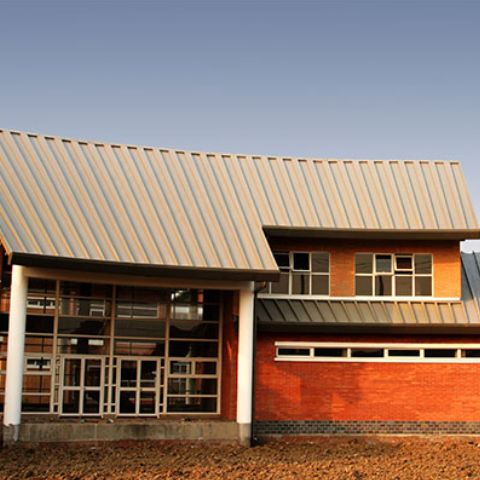

The CENTRIA SRS 3 Structural Standing Seam Roof System is a mechanically seamed roof system that features a separate, continuous batten. It can be field-formed for long panel lengths and is used in a wide range of architectural, industrial, and commercial roof applications.
Features:
Substrates:
G90 Galvanized base material, optional Galvalume®*
Gages:
20 [.91mm], 22 [.76mm], and 24 [.60mm] gages available
Optional 18 [1.19mm] gage available with 20 [.91mm] gage battens
Panel Width:
12 [305mm], 16" [406mm] and 18" [457mm] panel widths available. Field-formed continuous lengths up to 220 [67.1m]
Panel Length:
Factory formed panel lengths to 45'-0 [13.7m]
Panel Height:
3" [51mm] nominal seam height
Slope:
Minimum slope 1/2:12 [13mm:305mm] without endlaps, 1:12 [25mm:305mm] with endlaps
Other Details:
Standard planked pan
One-piece or two-piece attachment clips
Separate continuous batten
Mechanically seamed
UL 580 Class 90 Wind Uplift Rating; Tested in accordance with procedures established ASTM E 1592
FM 1-90 approval over open purlins or isoboard and deck
Dade County approval
*Galvalume is a registered trademark of BIEC International, Inc.
