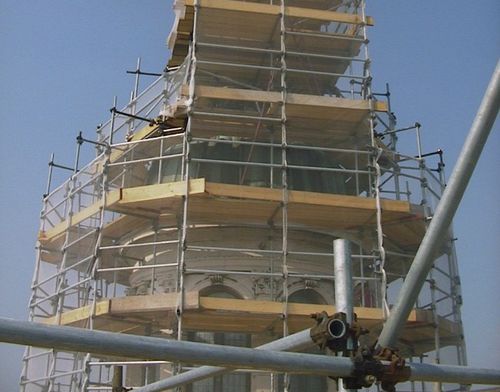

The most traditional scaffolding system is still highly popular due to its versatility. It is made up of galvanised steel tubes and orthogonal or swivel couplers.
System - With tubes and couplers
Material - S235JR steel
Tubes - Diameter 48.3 mm
Nominal thickness 3.2 mm
Couplers -
• Cold moulded orthogonal coupler - 4-bolt fastening.
• Hot moulded orthogonal coupler - 2-bolt fastening.
• Cold moulded swivel coupler - 4-bolt fastening.
Finish - Hot-dip galvanised coating in accordance with UNI EN ISO 1461
Ministerial authorisation - For loads of 300 N/m2
EN 12811
