Range :
Available in 10 sizes with Two types of front section available to accommodate means of transport (in overland or maritime container) and site constraints.
Operating range :
Air flow rates of 50,000 to 130,000 m³/h
Use :

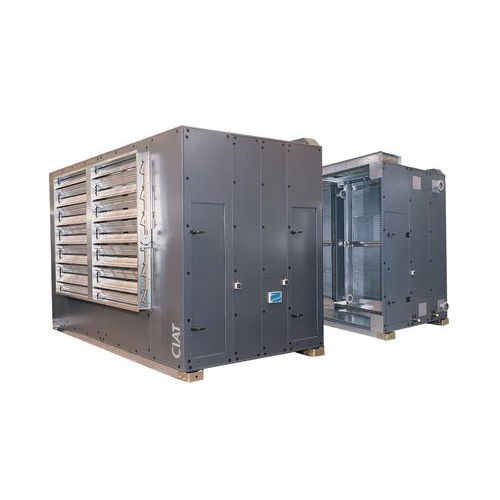

Air handling unit designed for large volumes of air (50,000 m³/h to 130,000 m³/h) at pressures reaching 2,600 Pa and even 3,600 Pa. Designed in particular for industrial facilities (processes, cleanrooms, makeup air) or for precise air handling control in commercial spaces (precise comfort) in order to meet mixing, filtration, heating, cooling, dehumidification, humidification, ventilation, recovery and sound attenuation needs. Available as a horizontal unit for indoor installation or outdoor installation with canopy and protective accessories.
Description :
Free-standing design, double-skin construction with 50 mm mineral wool insulation, modular
Attractive look, painted, with access doors as standard
External surface made of galvanised steel with RAL 7024 (graphite grey) finish
Boxes assembled to ensure smooth internal and external walls
All the filters are in international dimensions and fit inside frames. They are inserted and removed from the front via an access door. If front access is not possible, only the prefilters (95% gravimetric) may be inserted on runners through the side
The coils may be one-piece (along the entire width of the unit) or made of two offset pieces in the direction of the air flow. In the latter case, one of the coils may be tilted. If so, it should only be tilted along half the width of the unit. Four fin geometries. Copper, steel or stainless steel tubes.
