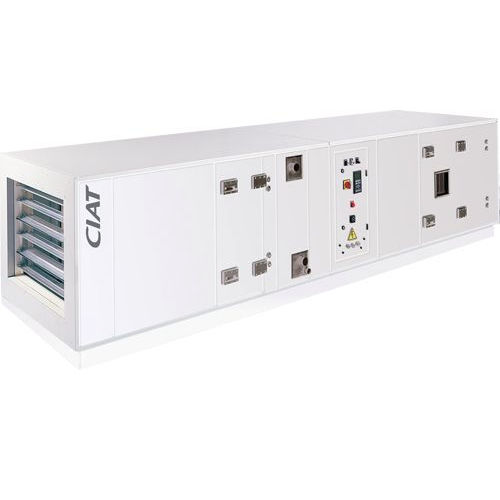

Commercial air handling unit AIRCLEAN

industrialfor clean rooms

Range : Available in 11 models. Operating range : Air flow rates of 1,000 to 60,000 m³/h Use : Hygiene-grade air handling unit designed for use in dust-controlled areas, healthcare environments and, more specifically, operating theatres (meets EN 13053). Description : Double-skin casing with 50 mm long-fibre mineral wool insulation, peripheral frame ensures hygienic ventilation, internal and external panels coated with RAL 7035 finish, smooth internal walls without protruding screws as required by EN 13053 Flat or sloped stainless steel bottom Inward-opening doors placed downstream of fan, double-groove doors lined with EPDM gaskets, offset hinges, handles with latches made from composite materials Large square inspection window as required by EN 13053, dual seal provided by a one-piece boot At least one removable panel per functional section as required by EN 13053, standard access panel on functional sections requiring maintenance Filter efficiency: G2 to H14 or activated carbon. International dimensions. Filter mounted on compressable runners. Universal or large-media frame with pressure tappings on each filtration stage. Filter assembly adapted to each filtration stage. Filter class F9 in accordance with EN 13053
