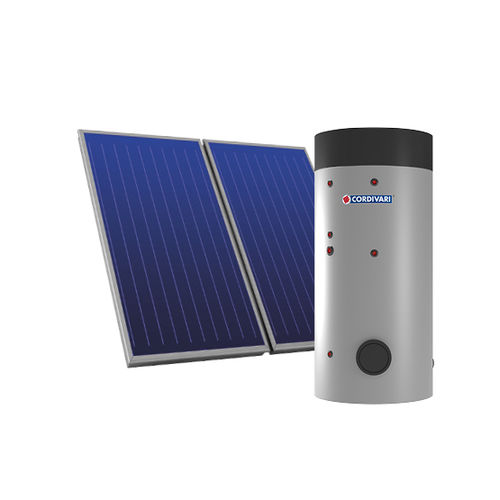

Thermal solar kit B2 PDC

forced circulationwith heat pumpfor roof

Solar thermal system with forced circulation Flat CSP solar collector Calorifier with fixed solar heat exchanger and integrated heat exchange unit for heat pump DHW production and storage Warranty: 5 years The Solar Thermal System B2 PDC represents the most advanced evolution of thermal solar system suitable to produce DHW. Thanks to the new exchanger group for heat pumps, it provides the most efficient integration system. SOLAR COLLECTOR – Insulation in mineral wool. – Anodized aluminum structure. – Highly selective absorber. – Impact test according to EN 12975 and EN 9806. – Tempered glass according to EN 12150. CALORIFIER – BOLLY® 2 PDC with fixed solar heat exchanger and integrated heat exchange unit for heat pump, with stainless steel AISI 316 L plates. – Tank in carbon steel. – Internal Polywarm® coating, suitable for drinking water according to 98/83/CE and subsequent amendments and DHW certification of internal Polywarm treatment DHW – SSICA – DVGW -W270 – UBA – WRAS. – Insulation of rigid polyurethane foam with high thermal insulation. External PVC cover. – Connection for electrical heater. – Tested in accordance with European standard EN 12897:2006.
