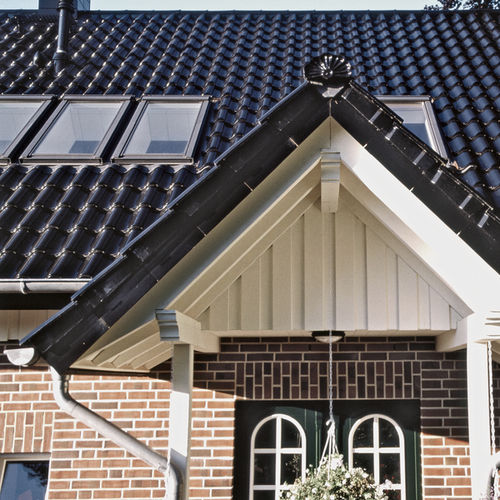

Interlocking roof tile SINFONIE

Portuguesesmallclay

The curved interlocking tile with distinctive look. Also suitable for flat roofs with a pitch up to 7°, with a waterproof sub-roof Exceptional versatility and ease of installation thanks to generous adjustment range of 29 mm Sophisticated interlock technology provides effective storm protection Support ribs add robustness and channel away any condensed water Two robust suspension lugs keep the tile firmly in place and ensure effective ventilation of roof battens. Top and bottom interlocking joints ensure best-possible protection against rain intrusion. Designed specifically to channel water away efficiently and effectively, to guarantee truly exceptional water resistance Covering width min. approx. - 228 mm Covering width on av. approx. - 230 mm Max. coverage width (approx.) - 232 mm Min. gauge (approx.) - 361 mm Covering length on av. approx. - 375 mm Max. gauge (approx.) - 389 mm Tile requirement min. (approx.) - 10.9 pcs/m² Average tile requirement (approx.) - 11.5 pcs/m² Brickware max. approx. - 12.2 pcs/m² Unit weight (approx.) - 4.6 kg/piece Weight per m² (approx.) - 52.9 kg/m² Weight per pallet (approx.) - 945 kg Pcs per mini-pack - 5 piece Pcs per pallet - 200 piece
