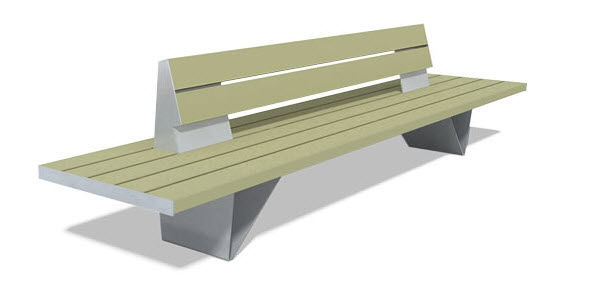

Contemporary public bench in concrete and GRP
BAN PRFV 3,37 M by Rubio, Carlos
DAE
Model: BAN bench PRFV seat and
backrest
Code: 70/122-3
Product type: Urban furnishings
Weight: 230Kg
Dimensions: Width Length Height
730mm 3370mm 843mm
Construction data, Materials
Leg: Hot dip galvanized steel plating, 6mm thick.
Seat: Made up of five strips of PRFV 3358mm long, 135mm wide, 50mm high.
and 4.7mm thick . The PRFV strips are flame-resistant and graffiti-proof. No maintenance required.
Backrest: Made up of two strips of PRFV 3358mm long, 135mm wide, 50mm high.
and 4.7mm thick. The PRFV strips are flame-resistant and graffiti-proof. No maintenance required.
Bolt: The anchorage bolts are M-12 zincated steel, 200mm long.
Nuts: A4 stainless steel.
Surface finish
Leg: Galvanized finish.
Seat and backrest: The colour of the PRFV strips is obtained by pigmenting the resin. The options are: yellow RAL 1000, orange
1007, grey 7047 and brown 8028
backrest
Code: 70/122-3
Product type: Urban furnishings
Weight: 230Kg
Dimensions: Width Length Height
730mm 3370mm 843mm
Construction data, Materials
Leg: Hot dip galvanized steel plating, 6mm thick.
Seat: Made up of five strips of PRFV 3358mm long, 135mm wide, 50mm high.
and 4.7mm thick . The PRFV strips are flame-resistant and graffiti-proof. No maintenance required.
Backrest: Made up of two strips of PRFV 3358mm long, 135mm wide, 50mm high.
and 4.7mm thick. The PRFV strips are flame-resistant and graffiti-proof. No maintenance required.
Bolt: The anchorage bolts are M-12 zincated steel, 200mm long.
Nuts: A4 stainless steel.
Surface finish
Leg: Galvanized finish.
Seat and backrest: The colour of the PRFV strips is obtained by pigmenting the resin. The options are: yellow RAL 1000, orange
1007, grey 7047 and brown 8028
