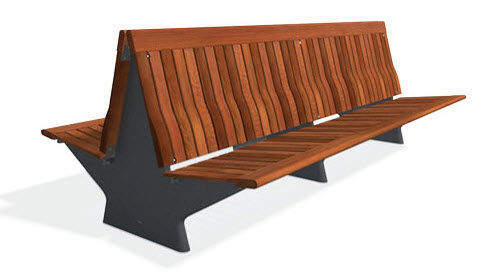

Contemporary public double side bench in wood and metal
KORO DOBLE 2,60 M by Mangado, Patxi
DAE
Model: Double KORO bench 2.60m
Code: 70/15-2
Product type : Urban furnishings
Weight: 438Kg
Dimensions: Width Length Height
1400mm 2600mm 950mm
Construction data, Materials
Leg: This bench includes three legs made from pearlitic cast iron GG-20.
Bolts: The anchorage bolts are M-12 zincated steel, 200mm long.
Strip support: Steel plating section.
Seat: The double bench is made up of 2 opposite seats. Each one made up of thirty-six strips 389mm long, 65mm
wide and 18mm thick, joined transversally by a strip 2620mm long, 100mm wide and 34 thick. All made from
tropical wood.
Backrest: The bench is made up of 2 opposite backrests. Made up of thirty-six strips 495mm long, 65mm wide, with a
longitudinal curvature which makes the backrest more comfortable. Joined transversally by a strip that is
2620mm long, 100mm wide and 34mm thick. All made from tropical wood.
Nuts: A4 stainless steel.
Surface finish
Leg: Powder primer, excellent corrosion resistance, finished with architectural polyester powder paint that is lead-free
and very resistant to outdoor use.
Strip support: Hot degreasing and phosphating. Finished with architectural polyester powder paint that is lead-free and very
resistant to outdoor use.
Colour: Black, forged effect. For other options consult factory.
Strips: Treated with pigmented, translucent oil that enhances the wood's natural beauty, and provides it with maximum
protection. Suitable for tropical wood.
