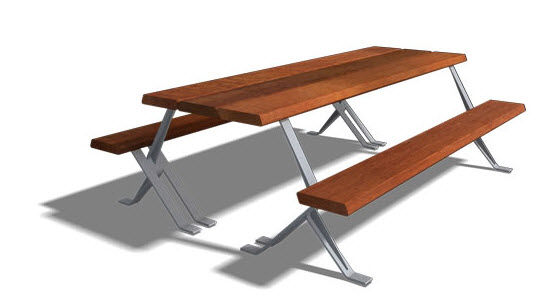

Table with cluster seating for public spaces
ALEPH MUS 2,25 M by Junquera, Jerónimo
DAE
Model: ALEPH MUS bench
Code: 70/123-2
Product type: Urban furnishings
Weight: 180Kg
Dimensions: Width Length Height
1610mm 2350mm 730mm
Construction data, Materials
Leg: Hot galvanized steel section, 10mm thick.
Central rail: Hot galvanized steel section, 10mm thick.
Bolt: The 12 anchorage bolts are M-12 zincated steel, 120mm long.
Seat and backrest: Unit made up of two strips of tropical wood 2350mm long, 250mm wide and 50mm thick.
Central strip: Unit made up of one strip tropical wood 2350mm long, 250mm wide and 50mm thick.
Nuts and bolts: A4 stainless steel.
Surface finish
Leg: Hot degreasing and phosphating. Finished with architectural polyester powder paint that is lead-free and very
resistant to outdoor use.
Colour: Steel grey, forged effect. For other options consult factory.
Seat and backrest: Treated with pigmented, translucent oil that enhances the wood's natural beauty, and provides it with maximum
protection. Suitable for tropical wood.
