Modular formwork EOLO

framedisposablefree-standing

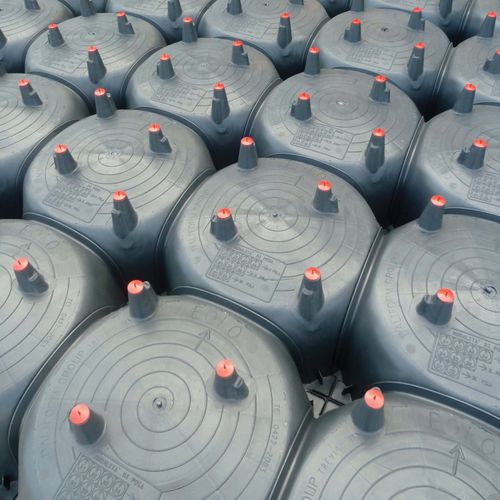

EOLO REPRESENTS THE EFFICIENT, FAST AND ECONOMIC REMEDY FOR THE REALISATION OF A PERFORATED FLOOR IN REINFORCED CONCRETE WITH HIGH LOAD-BEARING CAPACITY, WHICH CAN BE ALSO ACCESSED BY HEAVY VEHICLES. Thanks to the vertical asymmetric nozzles, axially perforated, it can be conveniently used for the distribution of air in composting, waste stabilisation systems, deodorising systems and for aerating the floors of the storage rooms for the storage/curing of food products. It is known since ancient times that storage aeration was required to avoid the formation of humidity which lead to the spreading of undisturbed mould and bacteria, deteriorating the goods (David Macaulay “la città Romana”). Eolo is constructed with recycled plastic and it is eco-compatible, and it is composed ofspecial high nozzles which permit the realisation of a 6 cm high perforated plate. Through the Eolo elements the air is uniformly distributed in the air cavity and it is then blown into the overhead environment. Efficient ventilation in all directions thanks to the cavity created by the Eolo formworks. High load-bearing capacity of the structure both in terms of static loads and in terms of moving heavy vehicles. Ease of positioning due to lightness and simple linking of the modules. Possibility of maintenance/cleaning through the inspection channels. Reduction of reinforcement time thanks to the presence of spacers integrated with the nozzles which host the welded mesh. Collection of possible leachate. • composting systems; • waste stabilisation systems; • biofiltration systems; • phytopurification tanks; • food storage rooms.
