Design software DDS-CAD PV
for electrical installations3D2D

design software
design software
design software
design software
Add to favorites
Compare this product


Characteristics

Function
design
Applications
for electrical installations
Type
3D, 2D

Description

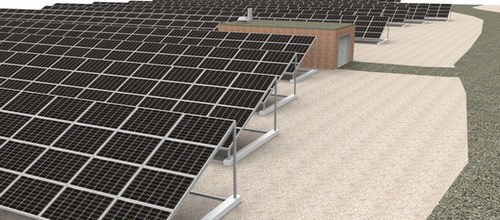

Specifically for planning PV projects, DDS has developed DDS-CAD PV. The software enables the planning of PV systems for a number of applications. Whether roof, façade, or ground mounted, the system can be planned and visualized in 2D and 3D. As a tool for consistent project design and complete system documentation, DDS-CAD PV will deliver detailed assembly plans, complete bills of material, string plans, system diagrams and reports. Of course the system will also provide an integrated yield simulation, which is calculated with the renowned "Polysun Inside" plug-in. Even automatic inverter maping is provided by the software. Due to the modular nature of the software, DDS-CAD PV can be extended with the Electrical module, providing advanced electrical planning features within the same project. Interfaces and data formats IFC and BCF DXF/DWG and 3D DWG PDF 3ds JPG, TIFF, BMP, PNG Excel, Word and Crystal Reports Bi-directional data exchange with GMC-I test and measuring instruments
