Electronic lock 29300

for entry doormultipointfor public buildings

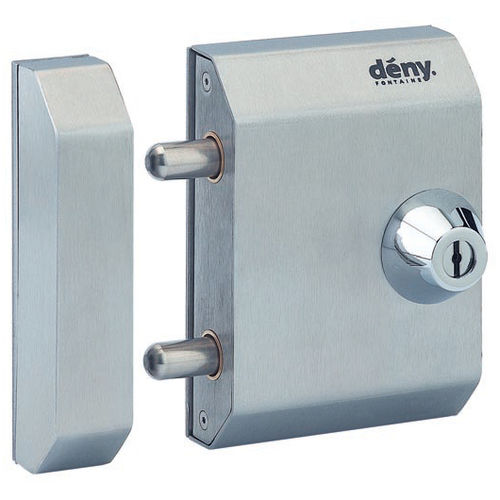

• Surface mounted motorised electric lock 29300 equipped with two Ø16 mm round bolts with 28 mm travel. • Electric lock associated with and controlled by a CTI board permitting lock control and power supply functions. • Automatic locking on closure. • Relocks in all cases. • Alarm initiated if an anomaly is detected. • Dry contacts for information: - Door position - Door locked - Door unlocked - Fault alarm - Key detection alarm - Cover present • Self protected lock cannot be removed if door closed. • Equipped with two Ø16 mm saw resistant stainless steel round, conical bolts with 28 mm travel. • Break-in resistant: 2 case-hardened steel bolts. • Dimensions permitting easy integration. • Mechanical key operation possible in the event of current interruption. • Contacts integrated in the lock. • The spacing of the two bolts provides an optimum security level. • Mechanical locking of bolts in out position. • Can be assembled at top of door • Simple, quick installation.
