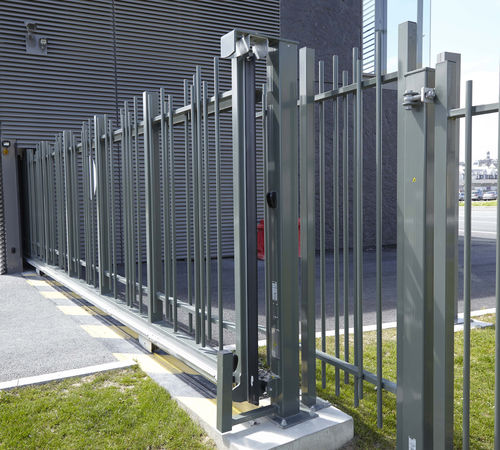

Sliding gate ALLIX®

metalwith barsmotorized

An innovative, versatile gate that adapts to all requirements • Standard infill: non-overstanding 25 × 25mm square bars, 110mm intervals • Frame: 80 × 60mm • Reinforcements: 60 × 60mm • Beam section varies depending on the opening width • Guide post section varies depending on the infill and dimensions • Receiving post section: 100 × 100mm CHOICE AND STYLE • Various infills matching our fencing. • A design that is both modern and unobtrusive due to the surface-mounted LED lighting panels and flashing lights, built-in lock, concealed wiring and built-in safety edge radio transmission system. • Operation: manual, motor-ready, and motorised. • 2 types of motorization: reversible and self-locking EASY INSTALLATION • Motorised version: preset and pre-wired in factory. • The included embedding jig functions as an anchoring template. SECURITY • Manual version: lock with European cylinder. • Motorised version equipped with all low-voltage accessories: detection cells, sensitive edges, flashing lights and area lighting.
