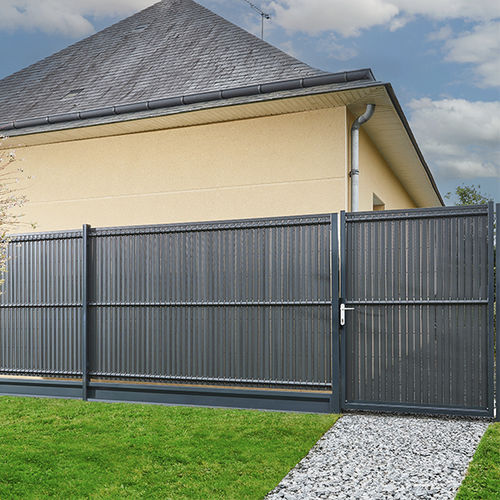

Louvered privacy screening LIXO® Top

PVCwood lookmodular

The high-end, premium quality solution for professionals • Rigid PVC privacy slats • Slat width: 48 mm • Depth : 5,7 mm • 5 heights: 1.00 to 1.90m • 5 colours including a wood stain finish Privacy slats for panels with big folds are available in all colours for all heights Privacy slats for panels with small folds are available in black 9005 / white 9010 / wood taint only for the height 1m20, 1m50 and 1m70 OPTIMUM PRIVACY FLAWLESS FINISH • Straight slats cut to the panel height. • Reinforcements to fit the panel folds. • Top cap rail in a single unit to add a touch of style. QUICK AND EASY TO INSTALL • Fastening with clip system, for a better hold of the batten to the panels • Battens can be grouped together to become edge battens in case of corner management or overlapping panels PACKAGING A Lixo® Top kit is designed to equip a 2.00 or 2.50 m wide panel and contains : • 45 rigid PVC laths : – 43 battens of 48 mm width, – 2 slats of 45 mm width (for the 2 meshes at the ends of the panel). • PVC reinforcements for the folds of the panel (can be recut for 2 m wide panels): – 2 reinforcements for heights 1 and 1.20 m, – 3 reinforcements for heights of 1.40 m and more. For an installation with an AXIS® S panel at a height of 1.90 m: provide one additional reinforcement per panel. • 1 high PVC finishing rail, 2.47 m long (can be cut to size for panels 2.00 m wide). COMPATIBILITY • With a new or existing fence. • With DIRICKX large folded panels: AXOR® CLASSIC, AXIS® S, M and C. • With AXYLE® MS, AXYLE® CS small ply panels (see "rigid panels" section) • With the AXYLE® blackout gate, choose a small pleat kit (see the "residential gates" section).
