urban lamppost / contemporary / aluminum / PMMA

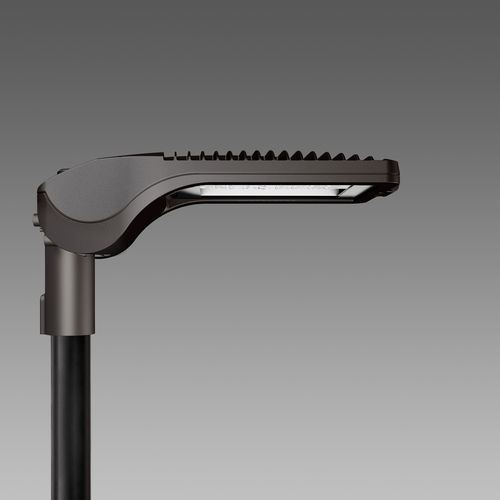

MINI STELVIO Disano Illuminazione

{{requestButtons}}

Characteristics

  • Type:

    urban

  • Style:

    contemporary

  • Material:

    aluminum, PMMA, with tempered glass diffuser

  • Light source:

    LED

  • Protection class:

    IP66

Description

Housing and cover: in die-cast aluminium and designed with a very small surface exposed to wind. Cooling fins are integrated into the cover.
Pole connection: in die-cast aluminium and with gaskets to secure the frame according to different inclinations. Adjustable ranges: between 0° and 15° for side mount; and between 0° and 10° for mast-top mounting. Inclination pace: 5°. Suited for poles with a diameter 63-60mm
Diffuser: clear, tempered glass, 4 mm thick, resistant to thermal shock and impacts (UNI-EN 12150-1 : 2001)
Coating: the standard powder coating consists of a first metal surface pre-treatment stage and of single layer of UV-stabilised, corrosion and salt resistant polyester powder coating.
Standard supply: Automatic temperature control inside the device with automatic resetting. Electronic safety device to protect the LED module and the related ballast compliant with EN 61547.
It works in two modes:
- differential mode: surge between power cables and between the phase and neutral.
- common mode: surge between power, L/N and ground cables or between the fixture’s body if it is of class II and installed on a metal pole.
