Aluminum edge trim DURABAL BK

for tileoutside cornerinside corner

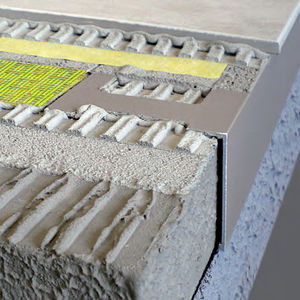

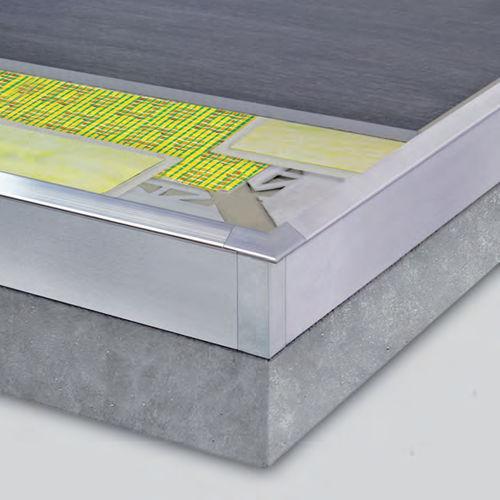

Balcony angle profile with drip edge for installation in thin-bed mortar • Technically and visually optimised finish • Matching most construction heights • Including corner pieces and connectors DURABAL BK DURABAL BK are elegant and flexible aluminium edging profiles with an integrated drip edge. Application areas are tiled balconies and terraces where flooring is laid in thin-bed mortar. A range of different heights are available to match the respective flooring thickness. The 18 mm and 60 mm high front edge cover conceals the entire layered structure between the subsurface and the flooring in style. Balconies - Terraces and Doormat Systems DURABAL BK Product information DURABAL BK, undrilled Aluminium: silver anodised Length: 300 cm Cover height: 60, 18 mm Height: 9, 11, 13 mm DURABAL BK, drilled Aluminium: silver anodised Length: 300 cm Cover height: 60 mm Height: 9, 11, 13 mm Horizontal external corner Metal die-cast: silver Height: 9 - 13 mm For drip sill: Metal die-cast silver anodised Cover height: 18 mm Height: 9 - 13 mm Horizontal internal corner Metal die-cast: silver Height: 9 - 13 mm For drip sill: Metal die-cast silver anodised Cover height: 18 mm Height: 9 - 13 mm Connector Aluminium: natural
