Aluminum edge trim DURABAL BW

for tilestraight

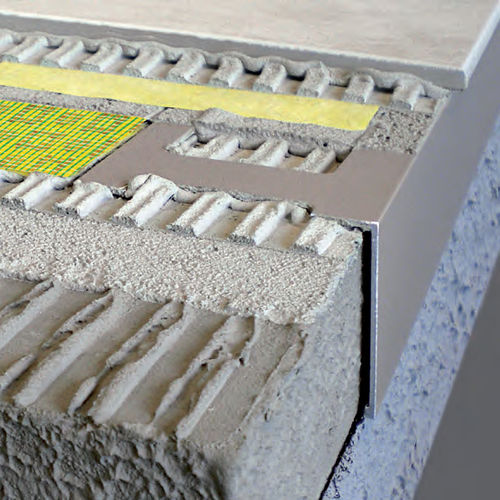

L-shaped balcony angle profile for installation in thin-bed mortar • For installation heights up to 95 mm • Available in four RAL colours DURABAL BW are L-shaped balcony angle profiles for the elegant edging of exposed edge areas of flooring constructions. Available in a wide range of RAL colours, they fit harmoniously in the overall decorative scheme. DURABAL BW Aluminium: powder coated, RAL 1019, 8019, 8003, 7035 Stainless steel (304): natural Length: 300 cm Height: 55, 75, 95 mm DURABAL BW, Corner piece Aluminium: powder coated, RAL 1019, 8019, 8003, 7035 Stainless steel (304): natural Height: 55, 75, 95 mm DURABAL BW, Connector Aluminium: powder coated, RAL 1019, 8019, 8003, 7035 Stainless steel (304): natural Height: 55, 75, 95 mm APPLICATION AND FUNCTION: DURABAL WP balcony corner profiles in L-shaped form are laid with the square perforated legs onto the load spreading layer (screed) using thin-bed mortar then thoroughly embedded and aligned to beflush. Connecting and corner pièces are also available to cover the necessary joints of about 2 mm between the profiles. Afterwards DURABASE CI++ decoupling mats are laid. These are moved up so that they touch the contact legs of the edging profile. Sealing tape about 150 mm wide (DURABASE WP) is then stuck over the edge profile and the DURABASE CI++ mat. For technical and Visual reasons, the balcony edge profile should be aligned that tiling surface protrude the edging profile about 1.5 cm. DURABAL BW L-form balcony corner profiles are ideally suited for refurbishment of balconies and terraces involving the relaying of tiles, pavings, concrète paving stones or natural stone using thinbed techniques.
