Variable gauge
In-line and Broken-bonded
high level of tightness
can be used on roofs with low roof slope
high quality finishing

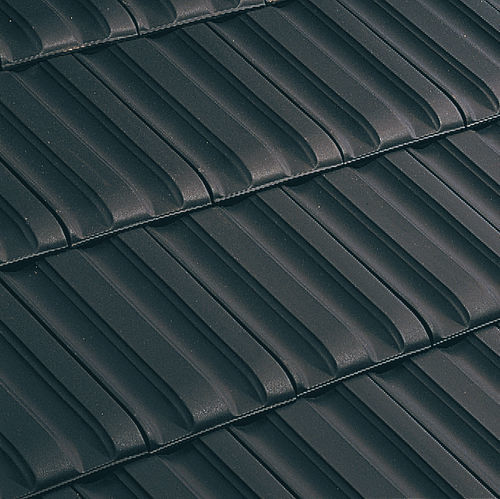

The PV 10 Huguenot is a clay tile from EDILIANS, made in France, like all the tiles from the Imerys group. The PV 10 Huguenot is a large format profiled interlocking tile. It is made and fired, either at St-Germer-de-Fly near Beauvais, or at Pargny-sur-Saulx. The PV 10 Huguenot is a large tile with vertical lines and double interlock.
The PV 10 Huguenot is easily recognisable because of its smooth appearance. The finish, the range of available colours and accessories mean that the PV 10 Huguenot will fit in anywhere. Indeed, the PV 10 Huguenot is used in all regions, both for newbuild and restoration. Its reasonable price is just another plus for this adaptable tile.
The PV 10 Huguenot is moulded in clays of exceptional quality which impart outstanding technical characteristics. The use of plaster moulds ensures a remarkable finish. The final price of the tile is very affordable, offering unbeatable value for money.
The PV 10 Huguenot is a large tile with vertical lines and double interlock. Classified as a "shallow pitch" tile, it can be installed either in line or broken bonded. Its variable gauge makes it particularly easy to install in all types of roof design.
Interlock
Double
Laid
In line or Broken bonded
Unit weight in Kg
4.300000
DTU Implementation
40-21
Tilery
St-Germer-De-Fly
Coverage per m²
From 9.9 to 12
Nominal gauge
From 310 mm to 376 mm
Working width
268 mm
Quantity per pallet
240 tiles
Linear metres of battens per square metre of roof
From 2.66 ml to 3.22 ml
