double interlocking
high level of tightness
In-Line and Broken-bonded
high quality finishing
variable gauge
unique roof tile design
guaranteed for roof pitches down to 22.5° minimum.

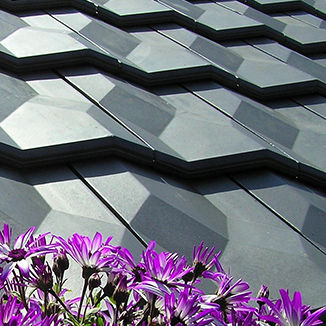

The Diamant is a slightly cambered large format tile that won the Gold Trophy design winner at Batimat in 2003.
The Diamant tile is decidedly modern, with its unique innovative aesthetics. This large slightly cambered tile gives a permanent pattern to the roof, thanks to its multifaceted surface.
The Diamant tile is made in the Beauvais region from the area's finest clays, which guarantee its finish and its strength, which is guaranteed for roof pitches down to 22.5° minimum.
In its modern pristine argentique colour the Diamant provides the perfect natural solution for contemporary building designs throughout the world, like a precious metal in our precious world. It has a special place and will put a smile on your face. Winner of the design trophy at Batimat 2003 and popularised in the programme D & CO, the Diamant seduces all those who come across it. Including you?
Interlock
Double
Laid
Broken bonded
Unit weight in Kg
4.300000
DTU Implementation
40-21
Tilery
St-Germer-De-Fly
Coverage per m²
10
Nominal gauge
380 mm
Working width
260 mm
Quantity per pallet
240 tiles
Linear metres of battens per square metre of roof
2.63 ml
